New Era Pump Systems NE-1002X

NE-1002X


  • The smoothest microfluidic syringe pump on the market. (Compare our advance per step with the competition and discover for yourself.)
  • Holds 1 syringe up to 60 cc*
  • Advance Per Step: 4.252232 Nanometers
  • Infusion rates from 8 pl/hr (.5 µl cc syringe) to 2545 µl/min (140 cc syringe)
  • Available in Double Syringe (NE-4002X) version
  • Easy-to-use keypad interface
  • Space Saving Chassis: Foot print size of only 5 3/4" x 8 3/4"
  • Won't take up unnecessary space on your laboratory or production bench
  • Includes all the advanced functions and programming features of the NE-1000 family
  • Includes the X Upgrade Smooth Linear/Gradient increasing and decreasing pumping feature
  • Disposable, Glass, Stainless Steel Syringes and Plumbing Supplies are sold separately.
NE-1002X
Attributes
Weight 3.8 lbs
Additional Specifications Syringe sizes: Smallest micro-liter, up to 60 cc

Number of syringes
NE-1002X: 1
NE-4002X: 2

Motor type: Step motor
Motor steps per revolution: 400
Motor gearbox 25: 1 reduction
Motor to drive screw ratio: 15/28
Drive screw pitch: 20 revolutions

Operational
Maximum speed: 0.2245 cm/min
Minimum speed: 0.8409Μm/hr
Maximum pumping rate: 1246 Μl/mn with a B-D 60 cc syringe
Minimum pumping rate: 1.4.59 nL/hr with a B-D 1 cc syringe
Maximum force: 100 lbs. at minimum speed, 18 lbs. at maximum speed
Number of Program Phases: 41
RS-232 pump network: 100 pumps maximum
RS-232 selectable baud rates: 300, 1200, 2400, 9600, 19200
Syringe inside diameter range: 0.100 to 50.00 mm

Features


  • Fully programmable; automation capable
  • Operates stand-alone or from a computer
  • Infusion and withdrawal
  • Set a single pumping rate and/or dispensing volume
  • Program up to 41 pumping phases that change pumping rates, set dispensing volumes, insert pauses, control and respond to external signals, sound the buzzer
  • Network, control, and monitor up to 100 pumps with one computer
  • Worldwide power supplies available
  • Motor stall detection
  • Dispensing accuracy of +/-1%
  • Unlimited lifetime technical support
  • Two year warranty

Photos

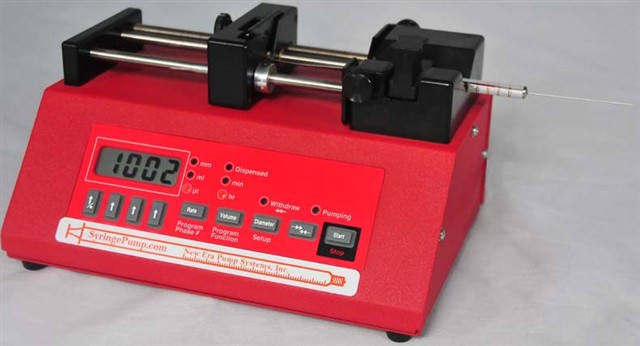

NE-1002X Syringe Pump

NE-1002X Syringe Pump
