Anton Paar Physica MCR Rheometer

Physica MCR Rheometer

The Physica MCR rheometers are based on a concept at the cutting edge of technology. The EC motor technique, the low friction bearing and the patented normal force sensor have been optimized over years to satisfy the highest demands of rheologists. Any type or combination of rheological tests, both in rotational and oscillatory mode, are possible with the Physica MCR rheometers. The modularity of the system allows the integration of a wide range of temperature accessories and special modules. The innovative and patented features Toolmaster™ and TruGap™ are breakthroughs in terms of user-friendliness.

Features

Technical highlights:

Powerful, synchronous EC motor drive

High-precision air bearing, including patented sensor for normal force measurement

TruGap™: Innovative and patented system for measuring the gap

Real-time position control oscillation (DSO): Fast and accurate strain control

Nanorheology for nanomaterial science

Different MCR models with outstanding specifications for various application
Ease of use:

Toolmaster™: Patented system for automatic recognition of measuring system and accessories

Quickfit coupling: Easy, one-hand measuring system connection

Wide range of measuring systems for all kinds of applications

Ethernet connection for remote control of the instrument through the company network

RheoPlus: User-friendly application software with 21 CFR Part 11 compatibility and LIMS/SAP interface
Wide range of accessories:

Temperature accessories in the temperature range from -150 °C to +1000 °C

Special accessories for DMA and DMTA measurements, rheo-optics, magneto- and electrorheology, interfacial rheology, UV curing and many other applications
Industries:

Beverages

Chemical Industry

Cosmetics, Personal Care

Education, Research

Electronics

Environmental

Food Industry

Materials Science

Minerals, Mining, Raw Materials

Paper, Textiles

Petroleum Industry

Pharmacy, Medicine/Biotechnology

Photos

PHOTO_1

Manuals and Resources

Link to more information

Instruments - Physica MCRxx1 Series

link added by WrenchSupport

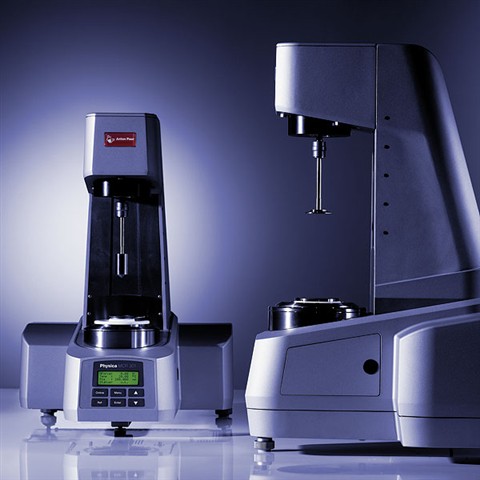

Picture of Anton Paar Physica MCR Rheometer
