MB45

The Ohaus Moisture Analyzer (MB45) is the full featured, compact moisture analyzer for every budget! Perfect for environmental, quality control, food and beverage, chemical, pharmaceutical industries, and more, this fast, rugged analyzer gives you the flexibility you need and the accuracy you require for moisture determinations.
The MB45 combines state-of-the-art heating with highly accurate weighing technology to deliver a faster, more precise method of moisture analysis.

  • Fast halogen element provides uniform infrared heating up to 200 C
  • Superior analytical performance, with readability of 1.0 mg, 0.01%moisture and 45 gram capacity
  • Powerful software for ease of operation, program storage and user customization
  • Heating at Light Speed
  • Infrared halogen technology begins drying your sample in seconds. The unique gold reflective housing serves to create a more uniform distribution of heat, improving analyzer accuracy
  • Precise Heating – software allows you to control temperature in 1 C increments, up to 200 C
  • Lightning Start-Up – heat from 50 C to 180 C in less than 1 minute
  • Rapid Results – infrared halogen heating performs up to 40%faster than traditional infrared methods.


Models Include:
MB23
MB25
MB35
MB45
MB45
Attributes
Additional Specifications Capacity (metric): 45 g
Readability (metric): 0.001 g
Repeatibility (Std. Dev.): 0.05% (3g sample) - 0.015% (10g sample)
Moisture Range: 0.01% to 100% (0.01% to 1000% for regain mode)
Interface: Bi-directional RS-232
Timer: 1 - 120 minutes
Heat source: Halogen
Temperature settings: 50° to 200° in 1°C increments
Power Requirements: 120, 240 VAC 50/60 Hz
Tare range: To capacity by subtraction
Operating Temperature Range: 50° to 104° F / 10° to 40° C
Display: 128 x 64 Pixel Graphical Backlit LCD Display
Information displayed: % moisture, % solids, time, temperature, weight, test ID, drying curve
Pan size (Dia.) (in/cm): 3.54 / 90
Dimensions WxHxD (in/cm): 7.5 x 6 x 14.2/ 19 x 15.2 x 36
Net Wt. (lb/kg): 10.1 / 4.6
Shipping Wt. (lb/kg): 14.1 / 6.4
Shipping dimensions (WxDxH) (in/cm): 21 x 15 x 16 / 53.4 x 38.1 x 41

Features

  • Four selectable drying shutoff parameters and four selectable user drying profiles provide greater test flexibility for end user saving time and costs.
  • Dot matrix backlit graphical display guides user through setup and provides detailed test result information.
  • Round Halogen Lamp with ramped voltage increase enables rapid uniform heating of sample to 200 C. Round lamp ensures accuracy by heating sample evenly. Controlled voltage increase to lamp greatly enhances bulb life.
  • Integrated test database stores 50 drying procedures including result storage with statistical analysis. Powerful software eliminates the need to maintain and process data outside of moisture balance.

Photos

Manuals and Resources

Note: We appreciate the support of individuals and companies making their documents and resources available to our community. If you find a document or resource that does not belong please let us know by emailing info@labwrench.com

Instrument Documents

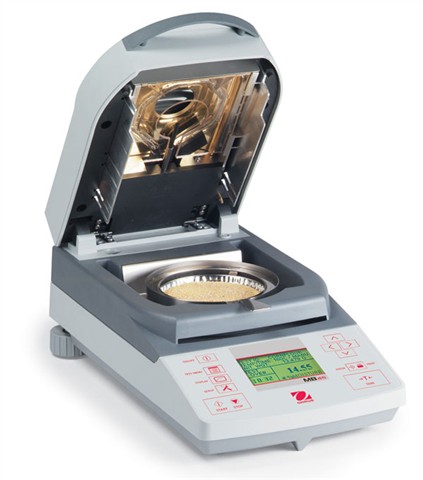

Picture of Ohaus MB45
Ohaus corporation is a leading manufacturer of scales and balances for the laboratory, education, industrial and specialty markets worldwide.

With...

More about Ohaus

Visit Ohaus

Questions and Answers

Recent Question Activity

Ask a Question

cooling fan getting off again and again

What can be the cause of the cooling fan turning off again and again there by not completing the analysis early in Moisture analyser ? MB 45

what causes operation buttons of OHAUS MB45 to freeze?

what could be cause if an ohaus MB45 moisture analyzer freezing whiles operating it? my device freezes and none of the buttons responses to any command. the "POWER" bottom won't work. in fact nothing works and its very frustrating!

Improving speed of the test

I am using this product for running water base liquids with 10% desolved solids, any users would be intrested in speeding of the test.

There are 3 Threads

Reviews

Member Reviews

There are no threads in Ohaus MB45 Reviews at this time.
Add a Review

Ohaus MB45 Articles

Helpful Resources, Articles, and Information

Most liquid samples tend to sizzle out of the aluminum dish, one could minimize that by using an inert glass fiber bads and placing the sample...
