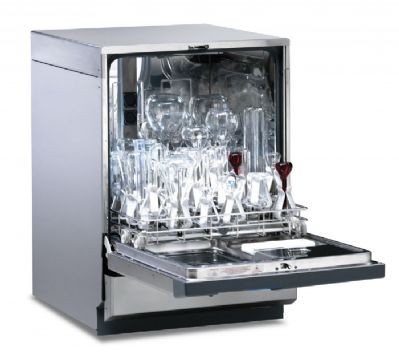

FlaskScrubber Glassware Washers are designed to wash and dry narrow-neck and general purpose labware. They have a lower spindle rack that holds up to 36 pieces of primarily narrow-neck glassware such as volumetric flasks. Water and detergent are pumped through the spindles to reach the innermost areas of your glassware. Forced air drying through the spindles ensures thorough drying inside and out. Specialized inserts for pipets, BOD bottles, petri dishes, culture tubes and small utensils enhance the FlaskScrubber's versatility. The washer may be outfitted with an Upper Standard or Spindle Rack to increase capacity. In addition, a Lower Standard Rack may be used instead of the Lower Spindle Rack. (Additional racks and accessory inserts are sold separately). Architect 3-Part Specifications are available for downloading.
An outside analytical laboratory conducted visual cleanability studies and EPA residue testing on the FlaskScrubber Glassware Washer. Results of the cleanability studies showed visually clean glassware. Based on the results of the EPA residue testing, the laboratory concluded that the FlaskScrubber is a viable option for cleaning and reuse of glassware used for trace metal, volatile organic and semi-volatile organic compounds.
Type 304 brushed stainless steel exterior and interior
Maximum Temperature
93
°C
Flow Rate
424
L/min
Wash/Rinse Cycles
Ten pre-set cycles; DRY ONLY, RINSE ONLY, PLASTIC, GLASS, GLASS PLUS, SCIENTIFIC, SCIENTIFIC PLUS,INTENSE, INTENSE PLUS, and EXTREME
Washer Capacity
Standard Capacity
Additional Specifications
Compliance: ETL, CE Water Recirculation Rate: 96 gal/min (363 liters/min), 112 gal/min (424 liters/min)
Features
Patent-pending design
Lower spindle rack, of Type 304 stainless steel, with 36 detachable large spindles for washing narrow-neck glassware. Rack accommodates a variety of inserts for holding beakers, culture tubes and other specialty glassware (inserts sold separately).
18 glassware holders, 36 clips and 10 additional interchangeable small spindles
Water temperature reaches 82° C (180° F) on 115 Volt models and 93° C (199° F) on 230 Volt models to sanitize glassware and for enhanced washing and faster drying
LCD information center for customizing cycles and monitoring operation, including internal water temperature (° C or ° F)
Water recirculation rates of 96 gal/min (363 liters/min) when operated on 115 Volt, 60 Hz and 230 Volt, 50 Hz and 112 gal/min (424 liters/min) on 230 Volt, 60 Hz for thorough cleaning
Dual pumps, one for washing and one for draining, to reduce potential for cross contamination
Built-in purified water pump to bring non-pressurized or pressurized purified water into the tank for up to six pure water rinses
Built-in steam generator that produces hot vapor to penetrate and remove dried residue for cleaner glassware
Manual-fill detergent dispenser for powder or liquid detergent
Manual-fill rinse aid solution dispenser
Built-in forced air drying through the spindles up to 99 minutes and programmable from 38-70 ° C (100-158 ° F)
Factory-set cycle programs. All 115 volt models have seven programs: RINSE ONLY, PLASTIC, GLASS, GLASS PLUS, SCIENTIFIC, SCIENTIFIC PLUS, and DRY ONLY. All 208/230 Volt models have three additional programs for a total of ten: INTENSE, INTENSE PLUS and EXTREME.
Alarms with display for HOT GLASS, PLEASE WAIT, WATER LOW, WATER HIGH and OVERFLOW
Two user-set cycle programs
User-set delayed start (up to 8 hours)
Type 304, brushed stainless steel door, tank, upper and lower wash arms. Freestanding models also have stainless steel exterior sides and top.
One-piece, stainless steel, fine mesh particle drain filter to trap debris in tank to protect the pumps
No center water distribution tower allowing for greater glassware capacity
Four leveling feet
3/8" Female NPT inlet fitting for hot tap water connection
Factory-installed drain hose and band clamp
Two year warranty on parts and labor
Made in the U.S.A.
Accommodate optional Upper Spindle Rack with additional wash arm and side release latches (Upper Spindle Rack sold separately).
Accommodate optional Upper and Lower Standard Racks.
