Accuri Cytometers C6®

C6®

Accuri C6 Flow Cytometers, CFlow® Software and Workstation PC supply all the capabilities of a full-featured flow cytometer at a fraction of the price of the market leading systems. The C6 system includes blue and red lasers, four color detectors and both forward and side scatter detectors plus software that is so intuitive that you will typically be up and running within an hour of receiving your Accuri system.

Our engineers had a daunting task-build a cytometer that is compact, simple to operate, easy to afford, and matches the performance of the best selling analytical flow cytometers. We started by listening to scientists like you and then designing a flow cytometer from the ground up incorporating your needs. We worked hard to provide the performance for most experiments, while making the C6 easier to use, simple to maintain, and affordable for everyone.

Accuri's innovations in fluidics, optics, electronics and software, coupled with state-of-the-art components, result in a cytometer that is powerful, robust, compact and affordable. We also developed an intuitive user interface that can be mastered in minutes. And we've done all of this so you can focus on one thing: advancing your science, in your lab.

C6®

Attributes
Additional Specifications	Excitation: 488nm (rated at 20,000hr life) 640nm (rated at 20,000hr life) Laser profile: 15 x 75 microns Scatter detection: Forward (0 degrees, +/-15) Side (90 degrees, +/-15) Emission detection: 4 colors, user swappable optical filters Standard set installed: - FL1 530 / 30nm (FITC/GFP) - FL2 585 / 40nm (PE/PI) - FL3 >670nm (PE-Cy5, PE-Cy5.5, PerCP-Cy5.5,PE-Cy5, PE-Cy7) - FL4 675 / 25nm (APC) Optical alignment: Fixed alignment, no maintenance required Flow cell: 200 micron ID quartz capillary Minimum particle size: 1 µm Minimum sample size: 30 µl Nominal flow rate - variable: 10 to 100 µl/min ; CFlow Plus only Fixed Flow Rates & Core Sizes: Slow - (Flow = 14uL/min ; Core = 10 um) Medium - (Flow = 35uL/mim ; Core = 16 um) Fast - (Flow = 66 uL/min ; Core = 22 um) Recommended Sheath Fluid: 0.2 um filtered DI water Core diameter: User selectable from 5 to 40 microns, CFlow Plus Only Florescence sensitivity: <750 MESF FITC Scatter resolution: Resolves human peripheral blood erythrocytes, lymphocytes, monocytes & granulocytes Fluorescence linearity: 2+/-0.05% for chick erythrocyte nuclei (CEN) Fluorescence precision: <3% CV for CEN Speed: 10,000 events/second maximum Absolute counts: Yes; CFlow Plus only Warm-up time: Less than 5 minutes Power: 70 Watts maximum, 100-240 VAC, 50/60 Hz Heat output: 240 Btu/hour maximum output Operating ranges: 15-30°C; <80% relative humidity Instrument size: 11"H x 14.75"W x 16.5"D (27.9 x 37.4 x 41.9 cm) Foot print with fluid tanks: 11"H x 21.5"W x 16.5"D (27.9 x 54.6 x 41.9 cm) Weight: 30 lbs (13.6 kg) Fluid tank capacity: 1L Sheath Fluid, 1L Waste 250mL Cleaner, 250mL Decontamination Signal processing: 24-bit A/D conversion Computer: 19" (48.26 cm) flat-panel monitor, 4GB memory Computer interface: USB 2.0

Additional Specifications

Excitation:
488nm (rated at 20,000hr life)
640nm (rated at 20,000hr life)
Laser profile: 15 x 75 microns
Scatter detection:
Forward (0 degrees, +/-15)
Side (90 degrees, +/-15)
Emission detection: 4 colors, user swappable optical filters
Standard set installed:
- FL1 530 / 30nm (FITC/GFP)
- FL2 585 / 40nm (PE/PI)
- FL3 >670nm (PE-Cy5, PE-Cy5.5, PerCP-Cy5.5,PE-Cy5, PE-Cy7)
- FL4 675 / 25nm (APC)
Optical alignment: Fixed alignment, no maintenance required
Flow cell: 200 micron ID quartz capillary
Minimum particle size: 1 µm
Minimum sample size: 30 µl
Nominal flow rate - variable: 10 to 100 µl/min ; CFlow Plus only
Fixed Flow Rates & Core Sizes:
Slow - (Flow = 14uL/min ; Core = 10 um)
Medium - (Flow = 35uL/mim ; Core = 16 um)
Fast - (Flow = 66 uL/min ; Core = 22 um)
Recommended Sheath Fluid: 0.2 um filtered DI water
Core diameter: User selectable from 5 to 40 microns, CFlow Plus Only
Florescence sensitivity: <750 MESF FITC
Scatter resolution: Resolves human peripheral blood erythrocytes, lymphocytes, monocytes & granulocytes
Fluorescence linearity: 2+/-0.05% for chick erythrocyte nuclei (CEN)
Fluorescence precision: <3% CV for CEN
Speed: 10,000 events/second maximum
Absolute counts: Yes; CFlow Plus only
Warm-up time: Less than 5 minutes
Power: 70 Watts maximum, 100-240 VAC, 50/60 Hz
Heat output: 240 Btu/hour maximum output
Operating ranges: 15-30°C; <80% relative humidity
Instrument size: 11"H x 14.75"W x 16.5"D (27.9 x 37.4 x 41.9 cm)
Foot print with fluid tanks: 11"H x 21.5"W x 16.5"D (27.9 x 54.6 x 41.9 cm)
Weight: 30 lbs (13.6 kg)
Fluid tank capacity:
1L Sheath Fluid, 1L Waste
250mL Cleaner, 250mL Decontamination
Signal processing: 24-bit A/D conversion
Computer: 19" (48.26 cm) flat-panel monitor, 4GB memory
Computer interface: USB 2.0

Features

Over 7 Decade dynamic range
Optical bench needs no alignment
Fluidics control
Absolute counts
Maintenance made simple
Works with current protocols and reagents
FCS 3.0 compatible file format
Compact size
Low power usage

Photos

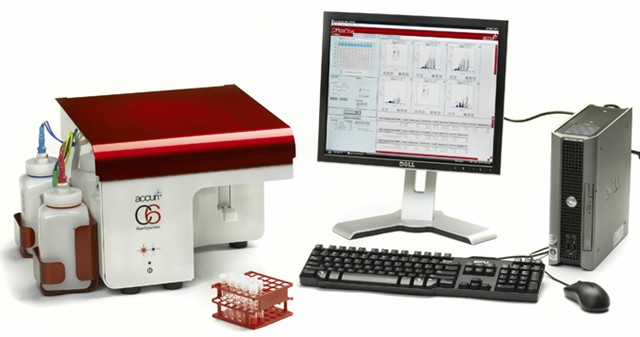

C6 System
