Bruker Corporation AVANCE III

AVANCE III

With the further enhanced AVANCE III NMR spectrometer architecture, we introduce the fastest, highest performing and most flexible NMR spectrometer on the market. The Avance III architecture is based on a forward-thinking electronics concept that delivers an unprecedented level of digital control, speed, flexibility and exceptionally pure NMR frequency generation.

The AVANCE III is the next generation in the very successful AVANCE series product line, which has established Bruker BioSpin as the clear global technology and market leader in NMR and pre-clinical MRI. The AVANCE III spectrometer is designed around an advanced digital concept that provides an optimized pathway for highest speed RF generation and data acquisition with a highly modular and scalable transmitter and receiver channel architecture.

AVANCE III

Attributes
Additional Specifications	Timing Resolution: 12.5 ns Minimum event time: 25 ns Phase resolution: (0.0055°) Frequency resolution: (0.005 Hz) • Single Chip RF generation • Patented Direct Digital Synthesis

Features

Flexible Communication Structure
The Avance III communication backbone consists of two data paths: a LAN-based approach (ethernet) for non-time critical applications (diagnostics, firmware upgrades, configuration parameters) and an ultra-fast LVDS bus for timecritical (real-time) applications.
Advanced RF Generation
Bruker’s patented digital RF generation provides the most precise and stable RF pulses, greatly surpassing any commercially available technologies for the highest spectral purity. In addition to the highest available phase and frequency resolution, RF parameters can be switched in only 25 ns, including simultaneous phase, frequency and amplitude switching.
Unparalleled Dynamic Range
The 2nd Generation Digital Receiver enables the highest dynamic range and digital resolution, thanks to the use of a special ADC architecture, leading to over 22 usable bits.
Beyond the Electronics
Together with a wealth of performance-leading solids and liquids probes, industry leading TopSpin operating software and a broad array of automation and hyphenation options, the Avance III is the NMR spectrometer that will enable not just the latest, but also future experiments and research
applications.

Photos

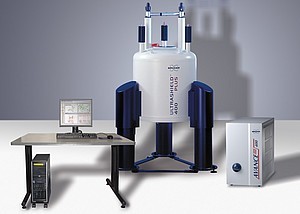

AVANCE III

Manuals and Resources

Note: We appreciate the support of individuals and companies making their documents and resources available to our community. If you find a document or resource that does not belong please let us know by emailing info@labwrench.com

Instrument Documents

AVANCE III NMR Hardware User Guide
