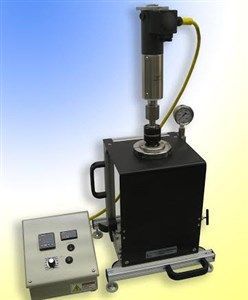

SFT - HPR Series - High Pressure Chemical Reactors

Supercritical Fluid Technologies presents a line of stirred reactors for high pressure chemistry. The HPR-Series reactors have been designed for researchers interested in performing pressurized chemical reactions in their laboratories. These reactors are ideal for a range of lab and research scale applications including, but not limited to, high pressure chemical synthesis and process development.

The reactors range in size from 50 milliliters to 4 liters and may be operated up to 10,000 psi and 350°C. Each reactor has a built in mixer with a magnetically coupled impeller for optimal combining conditions. All high pressure components are ASME rated, and protected by software “high alarms” and a rupture disc for safe operation. These laboratory bench top models are ideal for applications where repetitive use makes convenience a necessity, such as catalytic studies, polymerization, hydrogenation, oxidation, isomerization, and dehydrogenation. All sizes are supplied as ready-to-use instruments requiring only utility connections prior to operation. The HPR-Seriesare compact to easily operate in a fume hood. Their modular design makes it simple and cost-effective to alter the units’ basic configuration to adapt to new or evolving application needs.

All functions for the HPR-Series Reactor are controlled by choices of three integrated RxTrol™ processors. The RxTrol Sr. offers advanced features utilizing a microcontroller to perform all PID, ramp/soak, process trending, data acquisition, mixing and interlock functions. The RxTrol Jr. consists of (2) temperature sensors (wall/interior mounting), andfuzzy logic PID temperature and mixing controls in a table top assembly. The RxTrol B consists of (2) temperature sensors (wall/interior mounting) and an open loop mixer speed control via 0-100% power out­put knob.

Additional options include specialty metals, vessel windows (up to 150 degrees Celsius operation only), additional ports, cooling coils, sample loops, stand alone pressure transducers, supercritical fluid pumps and reagent addition modules.
