Systec - BSL-3
Manufactured by Systec
No Documents

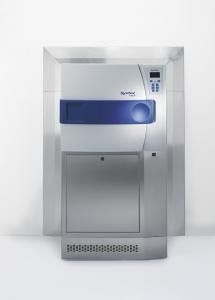

The BSL-3 Autoclave is a specially designed double door autoclave for Biosafety Level III laboratories.
The BSL-3 Autoclave is a specially designed double door autoclave for Biosafety Level III laboratories. Outfitted with the most advanced features for hazardous sterilization, this pass through autoclave is installed seamlessly for a gas tight fitting between the critical and non-critical side of your laboratory.
Active Questions & AnswersAsk a Question
There are no current Discussions
Autoclaves Service ProvidersView All (24)
Documents & Manuals
There are no Documents or Manuals available.
Features of BSL-3
- No heating elements or reservoir for dirty water in the chamber; this facilitates faster cooling as there is no reservoir of hot water that needs to be cooled
- Fast heat up times, as steam is always readily available
- No need to rely on an in-house steam line
- Improved removal of air from the empty chamber via pulsed heating
- Accuracy better than ± 0.3 C with empty sterilizer chamber
- After cooling, steam is immediately available for the next sterilization run
General Specifications
There are no General Specifications available.
Series Modals
Microbiology International - DX150
[+] View Model Specifications| Chamber Depth | 750 mm |
| Power Requirements | 3 x 220 V, 30 A |
| Orientation | Floor Standing |
| Peak Power | 9000 W |
| Chamber Volume | 150 L |
| Weight | 250 kg |
| Internal Diameter | 500 mm |
| Additional Model Specifications | Max. working chamber pressure: (bar) -1 to +4
Max. working chamber temp.: (Celsius) -10 to 150 Max. working steam generator pressure: (bar) 5 Max. working steam generator temp.: (Celsius) 160 Heating Capacity: (Watts) 9000 Necessary Connections: Tap water, DI water, Drain, Compressed air |
Microbiology International - DX200
[+] View Model Specifications| Chamber Depth | 750 mm |
| Power Requirements | 3 x 220 V, 30 A |
| Orientation | Floor Standing |
| Peak Power | 9000 W |
| Chamber Volume | 200 L |
| Weight | 310 kg |
| Internal Diameter | 500 mm |
| Additional Model Specifications | Max. working chamber pressure: (bar) -1 to +4
Max. working chamber temp.: (Celsius) -10 to 150 Max. working steam generator pressure: (bar) 5 Max. working steam generator temp.: (Celsius) 160 Heating Capacity: (Watts) 9000 Necessary Connections: Tap water, DI water, Drain, Compressed air |
Microbiology International - DX90
[+] View Model Specifications| Chamber Depth | 750 mm |
| Power Requirements | 3 x 220 V, 30 A |
| Orientation | Floor Standing |
| Peak Power | 9000 W |
| Chamber Volume | 95 L |
| Weight | 190 kg |
| Internal Diameter | 400 mm |
| Additional Model Specifications | Max. working chamber pressure: (bar) -1 to +4
Max. working chamber temp.: (Celsius) -10 to 150 Max. working steam generator pressure: (bar) 5 Max. working steam generator temp.: (Celsius) 160 Heating Capacity: (Watts) 9000 Necessary Connections: Tap water, DI water, Drain, Compressed air |
Microbiology International - HX320
[+] View Model Specifications| Chamber Depth | 750 mm |
| Power Requirements | 3 x 220 V, 50 A |
| Orientation | Floor Standing |
| Peak Power | 9000 W |
| Chamber Volume | 320 L |
| Internal Diameter | 740 mm |
| Additional Model Specifications | Max. working chamber pressure: (bar) -1 to +4
Max. working chamber temp.: (Celsius) -10 to 150 Max. working steam generator pressure: (bar) 5 Max. working steam generator temp.: (Celsius) 160 Heating Capacity: (Watts) 9000 Necessary Connections: Tap water, DI water, Drain, Compressed air |
Microbiology International - HX430
[+] View Model Specifications| Chamber Depth | 1000 mm |
| Power Requirements | 3 x 220 V, 50 A |
| Orientation | Floor Standing |
| Peak Power | 9000 W |
| Chamber Volume | 430 L |
| Internal Diameter | 740 mm |
| Additional Model Specifications | Max. working chamber pressure: (bar) -1 to +4
Max. working chamber temp.: (Celsius) -10 to 150 Max. working steam generator pressure: (bar) 5 Max. working steam generator temp.: (Celsius) 160 Heating Capacity: (Watts) 9000 Necessary Connections: Tap water, DI water, Drain, Compressed air |
Microbiology International - HX540
[+] View Model Specifications| Chamber Depth | 1250 mm |
| Power Requirements | 3 x 220 V, 50 A |
| Orientation | Floor Standing |
| Peak Power | 9000 W |
| Chamber Volume | 540 L |
| Internal Diameter | 740 mm |
| Additional Model Specifications | Max. working chamber pressure: (bar) -1 to +4
Max. working chamber temp.: (Celsius) -10 to 150 Max. working steam generator pressure: (bar) 5 Max. working steam generator temp.: (Celsius) 160 Heating Capacity: (Watts) 9000 Necessary Connections: Tap water, DI water, Drain, Compressed air |
Microbiology International - HX650
[+] View Model Specifications| Chamber Depth | 1500 mm |
| Power Requirements | 3 x 220 V, 50 A |
| Orientation | Floor Standing |
| Peak Power | 9000 W |
| Chamber Volume | 650 L |
| Internal Diameter | 740 mm |
| Additional Model Specifications | Max. working chamber pressure: (bar) -1 to +4
Max. working chamber temp.: (Celsius) -10 to 150 Max. working steam generator pressure: (bar) 5 Max. working steam generator temp.: (Celsius) 160 Heating Capacity: (Watts) 9000 Necessary Connections: Tap water, DI water, Drain, Compressed air |
