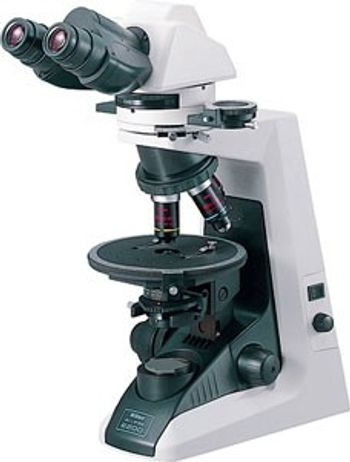

Nikon - ECLIPSE E200POL

Manufactured by  Nikon
Follow this Equipment

A cost-efficient polarizing microscope incorporating industry-acclaimed CFI60 infinity optics

The E200POL features an extremely compact body that takes up little space on your desk. And because the E200POL's design is based on the Eclipse E200 biological microscope, it shares the same objectives and uses many of the accessories created for higher-grade Eclipse series microscopes.
Active Questions & AnswersAsk a Question

There are no current Discussions

Need Equipment Support?

Request Support
Documents & Manuals

There are no Documents or Manuals available.

Features of ECLIPSE E200POL
  • A 1/4 Lambda and first order red tint plate combined on one slider is available.
  • The precision, centerable rotating stage features a vernier capable of reading to 0.1°.
  • The intermediate tube with a Bertrand lens lets you observe conoscopic images.
  • A daylight-type blue filter and GIF filter are available.
General Specifications
Microscope TypeUpright
Additional Specifications

Optical system: CFI60 infinity optical system
Magnification: 40-1000X for observation
8-500X for 35mm photomicrography
Eyepiece lens:
Standard set: 10X (F.O.V. 22mm), CM type with 90°crosshair and micrometer scale
Basic set: 10X (F.O.V. 20mm)
Eyepiece tube:
Standard set: Binocular P-TB, Trinocular P-TT2
Basic set: Binocular E2-TB, Trinocular E2-TF
Intermediate tube: Built-in focusable Bertrand lens removable from optical path; Built-in analyzer removable from optical path; Conoscopic/Orthoscopic observations switchable; With plate/compensator slot
Analyzer: 360° rotary dial; Minimum reading angle 0.1°
Nosepiece: Quadruple nosepiece fixed to main body
Coarse/fine focusing:
Fine: 0.2mm per rotation; Coarse: 37.7mm per rotation; Minimum reading: 2 microns on left-side fine control knob; Coarse motion torque adjustable; Refocusing system incorporated in stage
Stage: 160mmø circular graduated stage;
1° increments and vernier reading 0.1°
Illumination:Built-in 6V-20W/6V-30W halogen lamp precentered and prefocused; Continuously variable intensity control
Objective lens: CFI P Achromat 4X, 10X, 20X, 40X, 100X oil
Condenser: Dedicated strain-free swing-out type
Polarizer: Attachable to bottom of condenser
Compensator: Standard 1/4 Λ and tint plate; Quartz wedge or Senarmont compensator can be inserted into intermediate tube slot
