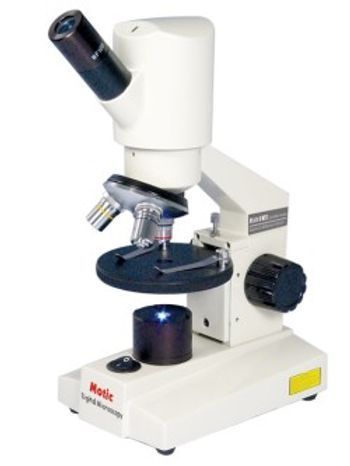

Motic - DM-52

Manufactured by  Motic
Follow this Equipment

This microscope combines practicality with well thought-out features into a quality microscope.

The DM-52 is fully portable thanks to its rechargeable LED illumination combined with a dimming on/off switch. This allows the unit to be easily carried from classroom to classroom and even outside and you don"t have to be tied-down by electrical outlet positions. When plugged into a computer through a simple USB connection, the DM-52 turns into an amazing Digital Microscopy station. When using higher magnifications, the built-in "floating" stage will allow you to move the sample smoothly under the objective.

The DM-52 runs on both Windows and Macintosh platforms and is packaged with Motic Play and Motic Educator.
Active Questions & AnswersAsk a Question

There are no current Discussions

Need Equipment Support?

Request Support
Documents & Manuals

There are no Documents or Manuals available.

Features of DM-52

  • Unique "floating" stage can be pushed in, out, left, right and even turned around making sure that moving the slide is as smooth as possible
  • The rechargeable LED illumination allows the microscope to be fully portable
  • The included Motic Application Software makes this a great Hobby as well as Educational tool
General Specifications
Power Requirements External Variable Voltage Charger 110V-240V
Microscope TypeDigital
Additional Specifications

[u]Microscope[/u]
Eyepiece:
Locked WF10X/18mm with built-in pointer
Nosepiece:
Triple revolving with positive click-stops
Standard Objectives:
Corrected 4x, 10x, 40x(S)
Stage:
"Floating" movable & rotatable stage with slide clips
Illumination:
Rechargable LED with dimming control

[u]Camera[/u]
Chip Configuration:
Built-in 1/4" Live 800x600 pixels Imaging Chip
Data Output:
USB2.0
Power Supply:
Through USB Cable from Computer
Included Software:
Motic Play & Motic Educator Multi-Language for PC and Motic Play & Motic Educator English for Macintosh
Included Accessories:
Calibration Slide for accurate measurements; Dust Cover
Minimum Specifications :
[i]Windows:[/i] XP or higher; 256MB RAM; P3; Built-in USB2
[i]Macintosh:[/i] OSX or higher; 256MB RAM; G3; Built-in USB2
