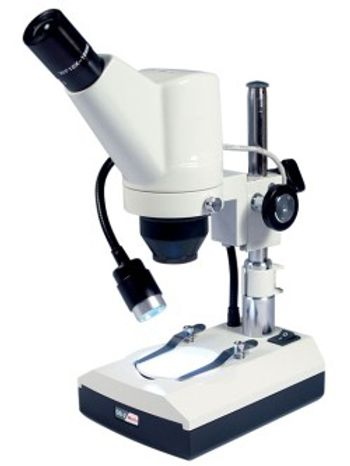

Motic - DS-2

Manufactured by  Motic
Follow this Equipment

This is a true cross-curriculum macroscope and will find frequent use in many classroom situations

The DS-2 is a digital macroscope designed according to a "wish-list" of features drafted by teachers in the US. This microscope can be used in Geography lessons to look at minerals and fossils, in Chemistry lessons to observe and record simple experiments as well as in the more traditional Biology environment. Coupled with a built-in digital camera chip, the DS-2 transmits live streaming images to a computer through a normal USB connection. With the included Motic application software, any image can easily be quantified, measured, edited, recorded and much more.
Active Questions & AnswersAsk a Question
1Replies

Win 7 support

Recent Questions & Answers

avatar placemark

Updated bySarah T

Win 7 support
View All Questions & Answers (1)

Need Equipment Support?

Request Support
Documents & Manuals

There are no Documents or Manuals available.

Features

There are no Features available.

General Specifications
Microscope TypeDigital
Additional Specifications

[u]Microscope[/u]
Eyepiece:
Locked WF10X
Stand:
Pole-type stand with slow-falling safety mount
Standard Magnification:
Built-in 2X objective; Auxilliary 2X objective provided for max. 40X magnification
Stage:
Reversible stage plate black/white; stage clips
Illumination:
Rechargeable LED on gooseneck mount for oblique lighting at different angles
Power Supply:
Attachable Auto Cut-off saefty charger

[u]Camera[/u]
Chip Configuration:
Built-in 1/4" Live 800x600 Imaging Chip
Data Output:
USB2.0
Power Supply:
Through USB Cable from Computer
Included Software:
Motic Play & Motic Educator for Windows & Macintosh OS9/OSX
Included Accessories:
Calibration Slide for accurate measurements; Dust Cover
Minimum Specifications:
[i]Windows:[/i] XP; 256MB RAM; P3; Built-in USB2
[i]Macintosh:[/i] OSX; 256MB RAM; G3; Built-in USB2
