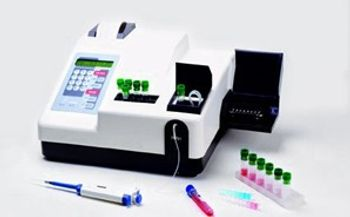

SEMI-AUTOMATIC LABORATORY ANALYSER FOR CLINICAL CHEMESTRY, LATEX AND ENZYME ASSAY
In Map Lab Plus analyses can be performed either in cuvettes or in microwells through two separated optical groups. Various parameters can be inserted by the operator. In particular, the following determinations can be carried out:
- ABSORBANCE
- END-POINT (Concentration)
- KINETICS
- FIXED-TIME
- MULTISTANDARD (uo to 7 standards)
- QUALITATIVE
- EIA
The Map Lab Plus uses disposable macro and micro cuvettes (glass or plastic), with an optical path of 1 cm. Number 10 interferential filters are included in the instruments: 4 for microwells and 6 for the cuvettes. The selection of the interferential filter is automatic, with powered handling managed by a microprocessor. This characteristic makes reading easier and eliminates filter- selection errors that may occur in instruments with manual selection.
The instruments can be programmed by means of a keyboard: the required parameters are inserted by a 32-character alphanumeric display. This display also shows the state of the instrument, eventual errors or malfunction signals. The analytic results are directly displayed in the pre-set measuring units.
Active Questions & AnswersAsk a Question
Recent Questions & Answers
Asked byARCIAGA MEDICAL CLINIC
Need Equipment Support?
Documents & Manuals
There are no Documents or Manuals available.
Features of Map Lab Plus
- Multipurpose semi-automatic analyzer
- Can perform both on standard cuvettes and flow cell for clinical chemistry and microwell strip for Latex, EIA, ELISA
- Can store up to 90 tests. The microwell strip are inserted automatically in the slot and promptly read step by step
- Includes 10 interferential filters with automatic selection. Bichromatic reading is allowed
- Fixed incubation temperature 37°C
- Powerfull Data Management Software for PC provided on CD-ROM
- Data Handling Software available upon request
General Specifications
| Power Requirements | 220/110V, 50/60 Hz, switchable |
| Weight | 14.5 kg |
Additional Specifications
OPERATING MODES
Operating modes: Absorbance, End Point, Fixed-Time, Kinetic, Multistandard and Qualitative tests
FOR FLOW CELL
For Flow cell: 18 µL
Typical working volume: 500 µL
Min. working volume: 350 µL
Carry Over: less than 1%
Intake: Peristaltic pump with programmable intake volume and air gap setting
FOR CUVETTE
Spectral range: 320-690 nm
Filter wavelength: 340-405-505-546-578-630 nm
In cuvette: 1 ml (minimum) for macro-cuvette; 0.3 ml for micro-cuvette
FOR MICROWELL STRIP
Spectral range: 320-690 nm
Filter wavelength: 405-450-492-630 nm
Microwell strips type: All types of 8-well strips
MEASURING SYSTEM
Reset: Automatic
Measuring range: from -0.200 to 3.000 O.D.
Photometric accuracy: ±1% from 0 to 2.500 O.D.
Photometric linearity: ±1% from 0 to 2.500 O.D.
Reproducibility: CV < 1% @ 2.0 O.D.
Reading: Monochromatic, Bichromatic
QC PROGRAM
Sample Memory: 30 samples survey for each test
Result: Levey-Jennings plot
Statistical parameters: CV, SD, Mean Value
Memory: Up to 40 tests
High/Low flags: Yes
Level: 2 per test
GENERAL[/b]
ID Sample: Selectable
Incubator: 10 positions at 37°C; ± 0.2°C
Printer: Built-in graphic printer with 24 columns
Dimensions: 40x53x17 cm
