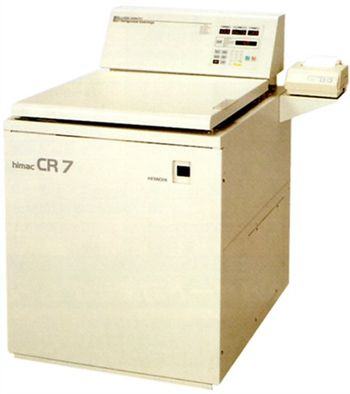

Hitachi Koki - himac CR7
Manufactured by Hitachi Koki
No Documents
High-Capacity Refrigerated...
High-Capacity Refrigerated Centrifuge
Active Questions & AnswersAsk a Question
There are no current Discussions
Centrifuge Service ProvidersView All (23)
Documents & Manuals
There are no Documents or Manuals available.
Features of himac CR7
High-capacity carbon fiber rotor (R7A)
- 1,000 ml x 6 bottles
- Max. 7,000 rpm (11,100 x g)
- To be used exclusively with a wide-mouth 1-liter bottle
- 1000PP bottle (WM)(P/N: S307700A, 6 pcs/box)
- 1000PC bottle (WM)(P/N: S308357A, 6 pcs/box)
- 1000PP cap (WM)(P/N: S410870A, 2 pcs/box)
- For high-volume separation of bacteria and organelle from their culture liquid and for rough separation in the manufacturing process of vaccines
- 400 ml MAP bag x 12 units can be processed at a time.
- Max. 4,200 rpm (5,030 x g)
- For blood component separation use at blood centers, etc.
- Memory operation
- Stores 30 sets of operating parameters.
- Net run time input
- Because the timer starts simultaneously with attainment of the selected speed, net operation time can be realized (patent pending).
- Convenient functions are standard features
- RCF calculation
- Memory lock function
- g• sec. calculation
- Step operation input
- Numerous safety devices and self-diagnosis functions are standard
- Door opening/closing detection
- Imbalance detection
- Overspeed detection
- Rotor setting abnormality detection
- Temperature control abnormality detection
- Power source abnormality detection
- Motor rotation abnormality detection
General Specifications
| Depth | 910 mm |
| Height | 1150 mm |
| Width | 730 mm |
| Power Requirements | Single phase, AC 220/230/240 V ±10%, 30A, 50/60Hz |
| Weight | 300 kg |
| Speed Range | 300 to 7000 rpm |
| Centrifuge Type | High Speed |
| Maximum Capacity | (tubes x ml) 1,000 x 6 (R7A rotor or R5S2 rotor) |
| Maximum RCF | 11100 xg (R7A rotor) |
| Maximum Speed | 7000 rpm |
| Refrigerated | Yes_ |
