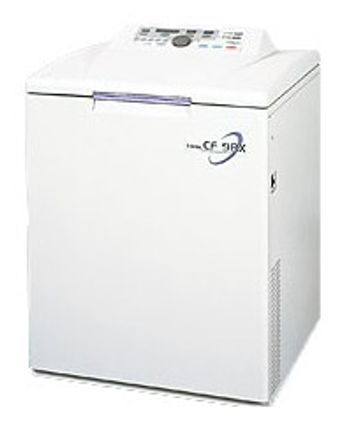

Hitachi Koki - himac CF12RX/ 9RX
Manufactured by Hitachi Koki
No Documents
Versatile High-Capacity Centrifuges
Multi-place rotor (T3S51/T3S52) of 15 ml x 80 can be used. Accepts up to 50 g imbalance when combined with automatic balancing rotor. Newly developed 2-axis coaxial drive motor enables stabilized centrifugation of low-speed big rotors and high-speed rotors (patent pending)
Active Questions & AnswersAsk a Question
There are no current Discussions
Centrifuge Service ProvidersView All (23)
Documents & Manuals
There are no Documents or Manuals available.
Features
There are no Features available.
General Specifications
There are no General Specifications available.
Series Modals
Hitachi Koki - CF12RX
[+] View Model Specifications| Depth | 632 mm |
| Height | 876 mm |
| Width | 600 mm |
| Speed Range | 300 to 12000 rpm |
| Maximum RCF | 16100 xg (T14A31 rotor) |
| Maximum Speed | 12000 rpm |
| Additional Model Specifications | Drive motor: Inverter motor (brushless)
Timer: 5-55 sec/1-99 min., with HOLD function Temperature setting range: -9°C to +40°C Power requirements: AC 115V±10%, 15A, 60Hz AC 200/208V±10%, 8A, 50/60Hz AC 220/230/240V±10%, 8A, 50Hz [u]Weight (kg)[/u] AC115V spec: 136 AC200-240V spec.: 42 |
Hitachi Koki - CF9RX
[+] View Model Specifications| Depth | 632 mm |
| Height | 876 mm |
| Width | 600 mm |
| Speed Range | 300 to 9000 rpm |
| Maximum RCF | 10600 xg (T9A31 rotor) |
| Maximum Speed | 9000 rpm |
| Refrigerated | No_ |
| Additional Model Specifications | Drive motor: Inverter motor (brushless)
Timer: 5-55 sec/1-99 min., with HOLD function Temperature setting range: -9°C to +40°C Power requirements: AC 115V±10%, 15A, 60Hz AC 200/208V±10%, 8A, 50/60Hz AC 220/230/240V±10%, 8A, 50Hz [u]Weight (kg)[/u] AC115V spec: 136 AC200-240V spec.: 142 |
