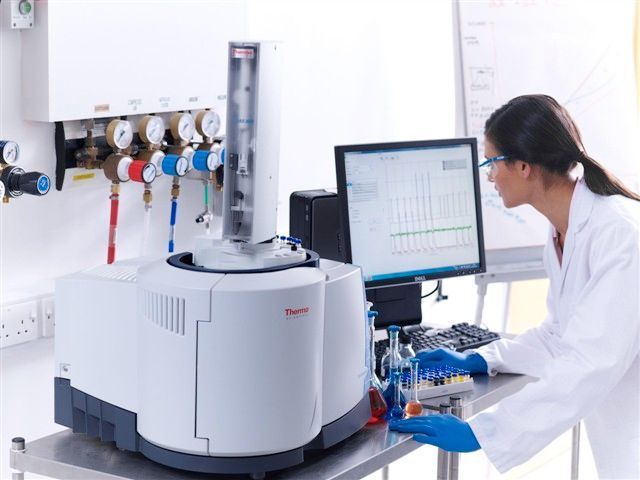

Thermo Scientific - iPRO 5000 S
The Thermo Scientific iPRO 5000 S Total Sulfur Analyzer offers breakthrough versatility with exceptional accuracy an...
The Thermo Scientific iPRO 5000 S Total Sulfur Analyzer offers breakthrough versatility with exceptional accuracy and precision.
The Thermo Scientific iPRO 5000 S Total Sulfur Analyzer provides the most versatile solution for your petrochemical challenges by enabling the direct injection of light and heavy hydrocarbons using a single introduction module.
Active Questions & AnswersAsk a Question
Recent Questions & Answers
Asked byRperez
Elemental Analyzers Service ProvidersView All (6)
Documents & ManualsView All Documents
Features of iPRO 5000 S
This breakthrough in versatility now means that the analysis of total sulphur in light or heavy hydrocarbons typically takes three minutes per replicate. All of this power is contained within the smallest NS analyzer on the market.
Breakthrough Versatility
- jetPRO* Direct Injector enables the direct injection of refinery samples into the furnace irrespective of sample boiling point
- No need to use boat inlet oxidation for the analysis of total sulphur in heavy hydrocarbons—replicates can now be directly analyzed in three minutes making the analysis typically four times faster than the standard boat method
- Combines with EGM-III gas and LPG introduction accessory, the iPRO 5000 S can analyze total sulphur in gases and LPGs up to a maximum sample pressure of 20 bar
- Samples accepted by the single introduction module range from gas (C1) up to residual vacuum gas oil (C70) and encompass all fractions in between
Exceptional Accuracy
- The iPRO 5000 Series has been benchmarked against ASTM proficiency testing program samples with an excellent agreement in concentration overall sample types tested
- Meticulously controlled and repeatable sample combustion and gas conditioning ensures exceptional accuracy
- Realistic and accurate measurement of sample concentrations at ultra-low levels is now possible
- Fully automated sample introduction, analysis and results reporting at the press of a button
Exceptional Precision
- Typical RSDs over three replicates of 2% or better irrespective of sample type
- No glass-glass connections
- High precision, machine components throughout
General Specifications
| Depth | 0.53 m |
| Height | 0.37 m |
| Width | 0.54 m |
| Power Requirements | 100 - 240V, 50/60Hz |
| Peak Power | 1500 VA |
| Weight | 35 kg |
Additional Specifications
[u]Instrument Properties[/u]
Septum Type: Merlin Microseal*
Typical Septum Lifetime: 25,000 injections
Operating Temperature: 15 - 35°C
Operating Humidity: 5% @ 15°C - 60% @ 35°C
Furnace Operating Temperature: 900 - 1150°C
Injection Module: jetPRO* Direct Injector
Software: NSX Visual
Pre-loaded Methods: ASTM & customizable methods
[u]Performance[/u]
Injected volume: 0 - 250µL
Sample Injection Speed: 0 - 2.5µL/sec
Typical Sample Analysis time: 3 min.
Typical Linearity (R2): 0.995
Working Range: 30ppb - 10,000ppm
Typical RSDs: Greater of 40ppb or 2%
Method Compliance: ASTM D5453, ASTM D7183, ASTM D6667, EN ISO 20846, EN ISO 15486
Gases
[u]Primary Oxygen[/u]
Minimum Oxygen Grade: 2.6 (99.6%)
Oxygen Consumption: 600 - 800mL/min
Oxygen Input Pressure: 3 - 7barg
[u]Carrier Gas: Choice of Oxygen, Argon or Helium[/u]
Minimum Oxygen Grade: 2.6 (99.6%)
Oxygen Consumption: 600 - 800mL/min
Oxygen Input Pressure: 3 - 7barg
Minimum Argon Grade: 4.8 (99.998%)
Argon Consumption: 0 - 200mL/min.
Argon Input Pressure: 3 - 7barg
Minimum Helium Grade: 4.8 (99.998%)
Helium Consumption: 0 - 200mL/min.
Pressure [Positive] [METRIC]: 3 - 7barg
[u]A/I 3000 Autosampler[/u]
Dimensions: (D x W x H) 0.25 x 0.44 x 0.23m
Weight: 9kg
Vial Size: 2mL
No. of Positions: 8
[u]A/S 3000 Autosampler[/u]
Dimensions: (D x W x H) 0.25 x 0.44 x 0.40m
Weight: 10kg
Vial Size: 2mL
No. of Positions: 105
[u]EGM-III Gas/LPG Introduction Module[/u]
Dimensions: (D x W x H)0.45 x 0.25 x 0.7m
Weight: 22kg
LPG Loop Volume: 100µL
Gas Loop Volume: 10mL
Analysis Time: 5 min.
Number of Loops: 1/1/1999
Max Sample Pressure: 3 - 7barg20barg
