Stable high-speed centrifugation for 3-second cycle times.

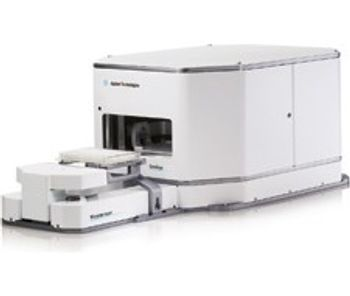

The Agilent Microplate Centrifuge is a small robot-accessible automated centrifuge that provides both vibration and noise control in a small, low-maintenance package. Ideal for high- or medium-throughput applications such as PCR purification, cell harvesting, and air bubble removal in high-density microplates. The Microplate Centrifuge is capable of rapid acceleration and deceleration (a customizable setting), minimizing the required cycle time. With a three-second loading time and robust motion control, the Microplate Centrifuge can be accessed by most laboratory microplate handlers/robots.
Active Questions & AnswersAsk a Question

There are no current Discussions

Microplate Handlers Service ProvidersView All (1)

Request Support
Features of Microplate Centrifuge

  • Compact Footprint - Takes up very little bench space and fits easily into integrated systems
  • Universally Accessible - With the automated centrifuge loader and high-throughput door design, the Microplate Centrifuge can be integrated with many robotic systems
  • Stackable Design - Multiple Microplate Centrifuge units can be stacked on each other, increasing the system throughput without adding to the footprint
  • Low Vibration - Dampening isolates vibration from mounting surface and minimizes impact on adjacent instruments
  • Optional Microplate Loader - Facilitates microplate hand-off and placement into one of two internal centrifuge microplate carriers
                        Worktations            Automated Spin-down Station. BenchCel Microplate Handling System with Microplate Centrifuge and Automated Centrifuge Loader.            When batches of microplates need to be spun down at one time, this spin-down station is a good choice. The Microplate Centrifuge integrates easily with the BenchCel Microplate Handler providing walkaway convenience. A simple software interface allows users to specify the centrifugation settings and with the click of the mouse, the BenchCel Platform and Microplate Centrifuge take care of the rest.                        Optional Microplate Loader            Automated Centrifuge Loader load sequence begins with automated door opening, microplate being lifted by Automated Centrifuge Loader to facilitate robotic microplate hand-off, and placement into one of two internal centrifuge microplate carriers.
General Specifications
Depth 45.7 cm
Height20.6 cm
Width 32.8 cm
Power Requirements 100–240 VAC, 50/60 Hz
OrientationBenchtop
Weight26 kg
Centrifuge Type Microcentrifuge
Maximum CapacityTwo microplates or tube racks
Maximum Speed3000 rpm
RefrigeratedNo_
Additional Specifications

Maximum Payload (per bucket): 250 g [8.8 oz]
Acceleration / Deceleration: 7.5 sec 0–3000 RPM
Maximum Imbalance: 10 g [0.35 oz] (consult factory for higher imbalance options)
Labware Compatibility Microplates: All
ANSI-compliant standard microplates including deep well microplates, PCR microplates, and tube racks.
Maximum Microplate Height:  4.83 cm [1.90 in]
Air: 28 Lpm at 5.5 bar [< 1 cfm at 80 psi]
Environment: 4–40 ºC
