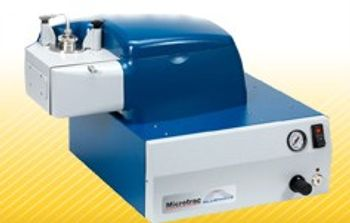

Microtrac - Bluewave
Manufactured by Microtrac
Utilizing Microtrac's patented Tri-Laser Technology Bluewave provides accurate, reliable and repeatable particle ...
Utilizing Microtrac's patented Tri-Laser Technology Bluewave provides accurate, reliable and repeatable particle size information for applications ranging from research and development to production to process and quality control.
Active Questions & AnswersAsk a Question
There are no current Discussions
Particle Size Analyzers Service ProvidersView All (2)
Documents & ManualsView All Documents
Features of Bluewave
- Resolution - The patented Tri–laser, blue/red, multi-detector, multi-angle optical system delivers unsurpassed resolution over the entire measuring range of the instrument. This is achieved through the use of both Red and Blue laser diodes.
- Accuracy - Microtrac Bluewave utilizes full Mie compensation for spherical particles. It also applies proprietary Modified Mie calculations for non-spherical materials – the majority of real-life materials. This feature is unique to Microtrac!
- Stability - Optical bench design incorporating fixed detectors and lasers provides a rugged platform for consistently repeatable measurements. The enclosed optical path ensures complete protection of the optical components leading to little or no operator intervention.
- Alignment - Laser alignment is fast and automatic. The overall optical bench stability ensures that realignment needs are minimal.
- Range - Measurement capability is from 0.010 to 2000 microns covering most particle size analytical requirements.
- Detector Activity - Microtrac's proprietary parallel channel integration provides full signal accumulation maximizing accurate signal acquisition.
- Wet and Dry Measurements - Using a selection of wet and dry sample delivery systems the Bluewave can be converted from wet to dry mode in less than 2 minutes.
- Flexibility - The modular design allows the user-selectable configurations based on application requirements. The Bluewave system is easily up-gradable to meet future requirements.
- Automation - Microtrac FLEX software allows programming, saving and recalling of Standard Operating Procedures (SOP’s). This facilitates increased precision in sample preparation and operation through automated, multi-sample accessories.
- Calibration - Internal uniform light source utilized for testing, calibration verification and recalibration of detector segments.
- Validation - Full IQ/OQ/PQ support documentation is available.
- Security - Microtrac FLEX software meets or exceeds FDA 21 CFR Part 11 protocols.
General Specifications
| Depth | 18 in |
| Height | 14 in |
| Width | 22 in |
| Weight | 60 lbs |
