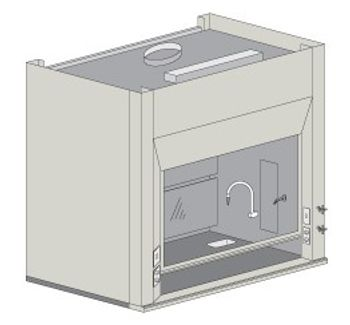

Air Master Systems - Eliminator HP Series
Manufactured by Air Master Systems
High Performance Low Velocity Fume Hood
he Eliminator HP hood comes standard with all the same features as other Eliminator models, along with some additional innovations to set this hood apart from its competitors. Features of the HP Series include:
The HP model is designed to operate economically while creating a safe work environment without compromising containment. Buy operating at 60 FPM, air flow across the sash opening results in a 40% savings in fume hood operation costs.
The HP hood was designed to do all this and still fit on a standard-depth countertop and cabinet. This means no disassembly and reassembly during the installation process. The HP hood fits through a standard door opening, making this hood the choice for that retrofit job.
- 40-60% energy savings, accomplished without compromising performance or safety.
- High-efficiency L.E.D. lighting with low maintenance costs.
- Standard 30" deep work surface for zero work space loss in your lab.
The HP model is designed to operate economically while creating a safe work environment without compromising containment. Buy operating at 60 FPM, air flow across the sash opening results in a 40% savings in fume hood operation costs.
The HP hood was designed to do all this and still fit on a standard-depth countertop and cabinet. This means no disassembly and reassembly during the installation process. The HP hood fits through a standard door opening, making this hood the choice for that retrofit job.
Active Questions & AnswersAsk a Question
There are no current Discussions
Fume Hoods Service ProvidersView All (9)
Documents & Manuals
There are no Documents or Manuals available.
Features of Eliminator HP Series
- Powder Coat Finish
- Full Frame Construction
- Shaft Drive Sash
- U.L. Listed Poly Resin Liner
- LED Lights
- Flush-Mount Airfoil
- Knock Down Capability
- Interior Access to Light
- Full-Length Finger Lift
- Sash Sweep
- Airflow Monitor/Alarm
- Sash Alarm
General Specifications
There are no General Specifications available.
Series Modals
Air Master Systems - EH-HP-48
[+] View Model Specifications| Airflow (CFM) | 469 CFM @ 28”* |
| Depth | 33.3 in |
| Height | 56 in |
| Internal Depth | 30 in |
| Internal Height | 1.3 in |
| Width | 48 in |
| Internal Width | 48 in |
| Fume Hood Type | Conventional Ducted |
| Additional Model Specifications |
Air Master Systems - EH-HP-60
[+] View Model Specifications| Airflow (CFM) | 619 CFM @ 28”* |
| Depth | 33.3 in |
| Height | 56 in |
| Internal Depth | 30 in |
| Internal Height | 1.3 in |
| Width | 60 in |
| Internal Width | 60 in |
| Fume Hood Type | Conventional Ducted |
| Additional Model Specifications |
Air Master Systems - EH-HP-72
[+] View Model Specifications| Airflow (CFM) | 769 CFM @ 28”* |
| Depth | 33.3 in |
| Height | 56 in |
| Internal Depth | 30 in |
| Internal Height | 1.3 in |
| Width | 72 in |
| Internal Width | 72 in |
| Fume Hood Type | Conventional Ducted |
| Additional Model Specifications |
Air Master Systems - EH-HP-96
[+] View Model Specifications| Airflow (CFM) | 1069 CFM @ 28”* |
| Depth | 33.3 in |
| Height | 56 in |
| Internal Depth | 30 in |
| Internal Height | 1.3 in |
| Width | 96 in |
| Internal Width | 96 in |
| Fume Hood Type | Conventional Ducted |
| Additional Model Specifications |
