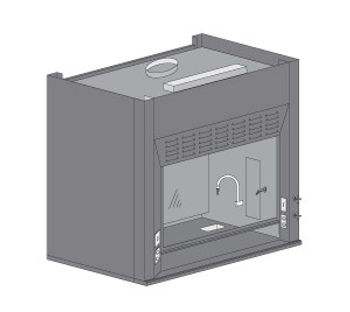

Air Master Systems - Eliminator 600 Series
Manufactured by Air Master Systems
No Documents
Radio Isotope Hood
The Eliminator 600 Radio Isotope Hood is specifically engineered and built to handle applications involving radiochemicals.
It has the same aerodynamic design as the standard airfoil hood, with the added feature of a one-piece stainless steel liner and countertop with radius construction to prevent absorption of radioactive and corrosive chemicals.
The interior of the hood and integral countertop are fabricated of 304 stainless steel, buffed and polished to a smooth #4 finish. This reduces the chance of chemical buildup and simplifies decontamination.
The flush-mount radiused airfoil is also type 304 stainless steel, as is the standard vertical rising sash. A combination sash is available as an option.
Five available sizes and many optional accessories meet all your design needs and the end user’s application requirements.
It has the same aerodynamic design as the standard airfoil hood, with the added feature of a one-piece stainless steel liner and countertop with radius construction to prevent absorption of radioactive and corrosive chemicals.
The interior of the hood and integral countertop are fabricated of 304 stainless steel, buffed and polished to a smooth #4 finish. This reduces the chance of chemical buildup and simplifies decontamination.
The flush-mount radiused airfoil is also type 304 stainless steel, as is the standard vertical rising sash. A combination sash is available as an option.
Five available sizes and many optional accessories meet all your design needs and the end user’s application requirements.
Active Questions & AnswersAsk a Question
There are no current Discussions
Fume Hoods Service ProvidersView All (9)
Documents & Manuals
There are no Documents or Manuals available.
Features of Eliminator 600 Series
- Powder Coat Finish
- Full Frame Construction
- Shaft Drive Sash
- T-8 Fluorescent Light with bulbs
- Flush-Mount Airfoil
- Interior Access to Light
- Full-length Finger Lift
- Louvered Front for By-Pass
- 304 Stainless Steel One-Piece Integral Work Surface and Liner
- Stainless Steel Sash
- Stainless Steel Airfoil
General Specifications
There are no General Specifications available.
Series Modals
Air Master Systems - EH-613-36
[+] View Model Specifications| Airflow (CFM) | 567 CFM @ 29”* |
| Depth | 33.3 in |
| Height | 56 in |
| Internal Depth | 30 in |
| Internal Height | 1.3 in |
| Width | 36 in |
| Internal Width | 36 in |
| Fume Hood Type | Conventional Ducted |
| Additional Model Specifications |
Air Master Systems - EH-613-48
[+] View Model Specifications| Airflow (CFM) | 833 CFM @ 29”* |
| Depth | 33.1 in |
| Height | 56 in |
| Internal Depth | 30 |
| Internal Height | 1.3 in |
| Width | 48 in |
| Internal Width | 48 in |
| Fume Hood Type | Conventional Ducted |
| Additional Model Specifications |
Air Master Systems - EH-613-60
[+] View Model Specifications| Airflow (CFM) | 1100 CFM @ 29”* |
| Depth | 33.3 in |
| Internal Depth | 30 in |
| Internal Height | 1.3 in |
| Width | 60 in |
| Internal Width | 60 in |
| Power Requirements | 56 |
| Fume Hood Type | Conventional Ducted |
| Additional Model Specifications |
Air Master Systems - EH-613-72
[+] View Model Specifications| Airflow (CFM) | 1367 CFM @ 29”* |
| Depth | 33.3 in |
| Height | 56 in |
| Internal Depth | 30 in |
| Internal Height | 1.3 in |
| Width | 72 in |
| Internal Width | 72 in |
| Fume Hood Type | Conventional Ducted |
| Additional Model Specifications |
Air Master Systems - EH-613-96
[+] View Model Specifications| Airflow (CFM) | 1900 CFM @ 29”* |
| Depth | 33.3 in |
| Height | 56 in |
| Internal Depth | 30 in |
| Internal Height | 1.3 in |
| Width | 96 in |
| Internal Width | 96 in |
| Fume Hood Type | Conventional Ducted |
| Additional Model Specifications |
