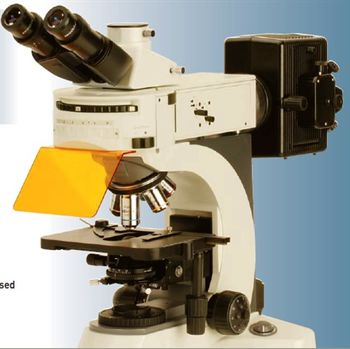

Accu-Scope - 3025 Series
Manufactured by Accu-Scope
An advanced clinical microscope designed for research and clinical applications.
Excellent Performance and Value in Routine Fluorescence Observation
The 3025’s reflected light fluorescence illuminator features a 6-position filter cube turret which can be rotated in either direction for user convenience and also features filter set identification markers. The integrated reflected light illuminator and high resolution AIS fluorite objectives provide unsurpassed performance and value for routine fluorescence observation. A wide variety of excitation cubes are available allowing users maximum flexibility.
Digital Imaging Systems Make Documentation Easier Then Ever Before
Micrometrics® cameras and image analysis software with an integrated database is a user friendly tool for image archiving, measurement, annotation, advanced image processing, fluorescence image composition, multi-focus composition and
spherical aberration correction.
One Click Does It All
With Micrometrics® software the user can capture and save an image including the microscope and camera settings, specimen and patient information. Using the integrated database all of the information is linked to the image and can be recalled with one click.
The 3025’s reflected light fluorescence illuminator features a 6-position filter cube turret which can be rotated in either direction for user convenience and also features filter set identification markers. The integrated reflected light illuminator and high resolution AIS fluorite objectives provide unsurpassed performance and value for routine fluorescence observation. A wide variety of excitation cubes are available allowing users maximum flexibility.
Digital Imaging Systems Make Documentation Easier Then Ever Before
Micrometrics® cameras and image analysis software with an integrated database is a user friendly tool for image archiving, measurement, annotation, advanced image processing, fluorescence image composition, multi-focus composition and
spherical aberration correction.
One Click Does It All
With Micrometrics® software the user can capture and save an image including the microscope and camera settings, specimen and patient information. Using the integrated database all of the information is linked to the image and can be recalled with one click.
Active Questions & AnswersAsk a Question
There are no current Discussions
Need Equipment Support?
Documents & Manuals
There are no Documents or Manuals available.
Features of 3025 Series
- EWF10x focusing eyepieces with eyeguards
- Siedentopf trinocular viewing head with photo tube; inclined 30º, rotatable 360º
- Optional ergonomic tilting binocular and trinocular heads available
- Multi-observation systems for 2, 3 or 5 viewers available
- Standard light distribution: binocular 100% or binocular/trinocular 20%/80% Fluorescence units light distribution: binocular 100% or photo 100%
- 48-75mm interpupillary distance settings
- ±5 Diopter adjustment
- Reversed quintuple nosepiece
- Right hand controls, low position, scratch resistant mechanical stage, 185mm x 142mm, movement range 75mm x 55mm
- Flip-top N.A. 1.1 Abbe condenser with iris diaphragm
- Coaxial coarse and fine focusing controls
- Variable Koehler 6 volt 30 watt halogen illumination
- Daylight blue filter
- Dust cover and 5 year limited warranty
- Optional Micrometrics® CCD and CMOS digital cameras with SE Premium image analysis software
General Specifications
| Depth | 18 in |
| Height | 24 in |
| Width | 16 in |
| Field of View | 22mm |
| Weight | 27 lbs |
| Microscope Type | Upright |
| Objective | 4x, 10x, 20x and 40x available |
Additional Specifications
Models:
3025
3025 Fluorescence
3025-CS
3025-BE-CS
3025-PH-CS
3025-2
3025-2F
3025-3
3025-5
