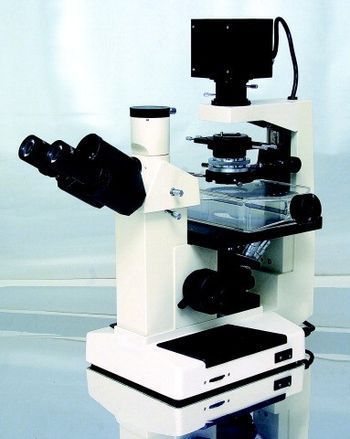

Jenco USA - CP-2A1
No Documents
Jenco introduces a high optical standard on a versatile frame at budget conscious levels. The long working distance...
Active Questions & AnswersAsk a Question
There are no current Discussions
Need Equipment Support?
Documents & Manuals
There are no Documents or Manuals available.
Features of CP-2A1
- Affordable - Jenco delivers exacting performance for routine research without consuming your budget
- Versatile - Trinocular body for image documentation; condenser design for observation of virtually all vessel types; mechanical stage with inserts for well plates and petri dishes; three objectives each for both phase contrast and brightfield
- Durable - An all metal frame with an all metal focusing mechanism ensures this instrument will perform well beyond the industry leading 5 Year Warranty
- 230V units are CE Compliant
General Specifications
| Depth | 21.5 in |
| Height | 22.5 in |
| Width | 9 in |
| Weight | 50 lbs |
| Microscope Type | Inverted |
Additional Specifications
Optical body
Seidentopf design inclined 30°; 55 to 75 mm interpupillary adjustment, 360° rotation
Nosepiece
Quintuple, ball bearing
Eye pieces
10X, Focal Length 25mm, FN 20 mm.
Focus mechanism
Adjustable tension control to prohibit drift and adjustable up-stop to protect objective lenses; dial markings at 0.002mm increments
Condenser
1.25 N.A. 2 element Abbe with iris diaphragm and rack and pinion focusing; 55mm working distance, swing out working distance is 3 inches
Kohler Illumination
Field diaphragm, 30 watt, 6 volt Halogen bulb with electronic dimmer
Mechanical stage(WHD)(in/cm)
8.25 x 8.875 / 20.95 x 22.54; Right-hand Coaxial dropdown X-Y Control Knobs; Four Inserts for: well plates (13 x 8 cm and 8 x 5 cm ) petri dish (6.8 cm diam.) and slides (7.5 x 3.5 cm and 7.5 x 2.5 cm)
