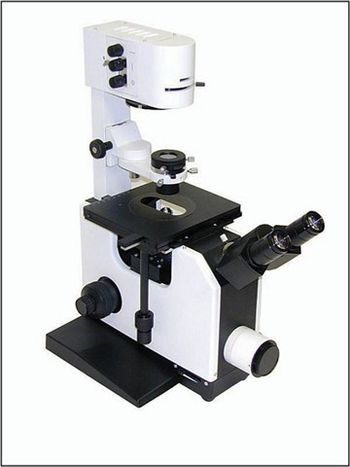

Warner Instruments - HAI 900
No Documents
Ergonomically designed, precisely manufactured, and simple to use; the new HAI 900 Series Inverted Microscope provides...
HAI 900 Series Inverted Microscopes are ideal for tissue culture, cellular biology, and other advanced applications. HAI 900 microscopes are modularly designed to suit different applications. Whether you only need a basic inverted binocular microscope for brightfield observations, or if you need a full phase contrast inverted microscope with digital camera attachment, there is a model to meet your needs.
- Ideal for Tissue Culture and Cell Biology
- Long working distance plan objectives in 4x, 10x, 25x and 40x
- Long working distance plan phase objectives in 10x, 25x and 40x
- Optional SLR 35 mm photographic and CCTV systems
- Large mechanical stage with low position coaxial x-y movement
- Swing-out condenser to accommodate extra large objects
- Wide selection of filters
Active Questions & AnswersAsk a Question
There are no current Discussions
Need Equipment Support?
Documents & Manuals
There are no Documents or Manuals available.
Features of HAI 900
- Optics: Filter disc with five filter positions. Field diaphragm and auxiliary condensing lens
- Eyepiece: Paired WF10X eyepieces. Optional 10X focusing eyepiece with reticule and cross-hair
- Objectives: Plan brightfield long working distance objectives, choice of 4X/10X/25X/40X. Plan phase long working distance objectives, choice of 10X/25X/40X
- Port: Built-in video and photographic port included (lens and adapter required). CCTV video attachment and SRL photographic attachment available
- Stage: Large graduated mechanical stage with low position X-Y movement knob
- Condenser: Center able condenser with iris diaphragm and phase annulus ring slot. Swing-out condenser holder with rack and pinion movement and safety stop
- Illuminator: Built-in 6V, 20W halogen illumination with intensity adjustment and lamp centering device
- Electrics: UL & CSA approved electrical parts, three wire grounded electric cord
- Warranty: 5-year limited warranty
- Cover: Plastic dust cover
General Specifications
| Microscope Type | Inverted |
Additional Specifications
Eyepieces: Paired WF 10X eyepieces
Objectives: Choice of 10x, 25x and 40x, Plan brightfield long working distance objectives, Plan phase long working distance objective
Video Capabilities: Built-in video and photographic port (lens and adapter required)
Stage: Large graduated mechanical stage with low position x-y movement knob
Condenser: Center-able condenser with iris diaphragm and phase annulus ring slot, swing-out condenser holder with rack and pinion movement and safety stop
Filters: Filter disc with five positions
Diaphragm: Field Diaphragm and condensing lens
Illumination: Built-in 6V, 20W halogen illumination with intensity adjustment and lamp centering device
Shipping Dimensions: 229 x 330 x 508 mm (9 x 13 x 20 in)
Shipping Weight: 16.5 kg (36 lbs)
