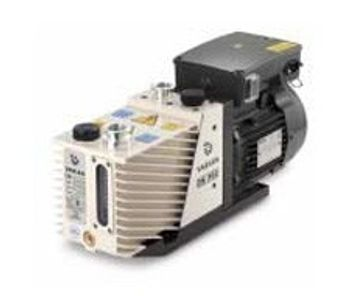

Agilent Technologies - DS 302

Manufactured by  Agilent Technologies
Follow this Equipment

Thanks to a very simple and highly reliable design, these field proven rotary vane pumps provide excellent vacuum...

Thanks to a very simple and highly reliable design, these field proven rotary vane pumps provide excellent vacuum performance. Agilent’s quality and manufacturing standards ensure that the DS Rotary Vane Pumps provide high pumping stability for light gases, low noise, minimal oil backstreaming, and a long operating life. The pump’s two-stage design allows for low operating temperature, minimal backstreaming at low pressure and good pumping efficiency and gas ballast in the low 10-2 mbar region. DS Rotary Vane Pumps conform to European Union directives (CE) and Restriction of Hazardous Substances (RoHS) requirements, and all pumps are UL and Canadian Standards Authority (CSA) approved.
Active Questions & AnswersAsk a Question

There are no current Discussions

Vacuum Pumps Service ProvidersView All (13)

Request Support
Documents & Manuals

There are no Documents or Manuals available.

Features of DS 302

  • Low 10-3 mbar operation
  • Low operating temperature
  • Minimal backstreaming at low pressure
  • Good pumping efficiency and gas ballast in the low 10-2 mbar region
General Specifications
Exhaust ConnectionKF 25 DN
Inlet ConnectionKF 25 DN
Vacuum Pump TypeRotary-Vane Pump
Weight25 kg
Oil0.25/0.6 liter capacity
Additional Specifications

Free air displacement:
At 60 Hz - 10cfm
At 50 Hz - 14.2 m³/hr
Pumping speed:
At 60 Hz - 8.2cfm
At 50 Hz - 11.6 m³/h
