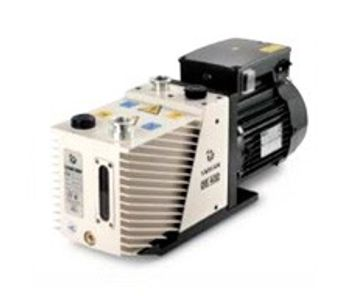

Agilent Technologies - DS402

Manufactured by  Agilent Technologies
Follow this Equipment

Thanks to a very simple and highly reliable design, these field proven rotary vane pumps provide excellent vacuum...

Thanks to a very simple and highly reliable design, these field proven rotary vane pumps provide excellent vacuum performance. Agilent’s quality and manufacturing standards ensure that the DS Rotary Vane Pumps provide high pumping stability for light gases, low noise, minimal oil backstreaming, and a long operating life. The pump’s two-stage design allows for low operating temperature, minimal backstreaming at low pressure and good pumping efficiency and gas ballast in the low 10-2 mbar region. DS Rotary Vane Pumps conform to European Union directives (CE) and Restriction of Hazardous Substances (RoHS) requirements, and all pumps are UL and Canadian Standards Authority (CSA) approved.
Active Questions & AnswersAsk a Question

There are no current Discussions

Vacuum Pumps Service ProvidersView All (13)

Request Support
Documents & Manuals

There are no Documents or Manuals available.

Features of DS402

  • Low 10-3 mbar operation
  • Low operating temperature
  • Good pumping efficiency and gas ballast in the low 10-2 mbar region
  • Minimal backstreaming at low pressure
General Specifications
Max. Pumping Speed410 L/min
Exhaust ConnectionKF 25 DN
Inlet ConnectionKF 25 DN
Vacuum Pump TypeRotary-Vane Pump
Weight35 kg
Oil0.5/1.0 liter capacity
Ultimate Vacuum0.002 mbar 2 × 10-3 mbar
Additional Specifications

Free air displacement:
At 60 Hz - 14.5 cfm
At 50 Hz - 20.5 m³/hr
Pumping speed:
At 60 Hz - 12.3 cfm
At 50 Hz - 17.4 m³/h
