This product is Discontinued

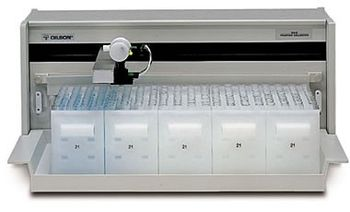

Gilson - 202C

Manufactured by  Gilson
Follow this Equipment

Combines the benefits of multimode operations, system control capability and high capacity.

Gilson's 202C Fraction Collector combines the benefits of multimode operations, system control capability and high capacity. With 15 operating modes, it’s suitable for virtually any HPLC application including large-scale preparative applications.
Active Questions & AnswersAsk a Question

There are no current Discussions

Need Equipment Support?

Request Support
Documents & Manuals

There are no Documents or Manuals available.

Features of 202C
• Large-bed, high-capacity, cold room-compatible fraction collection with a wide variety of standard and non-standard racks   • Accommodates up to five racks for non-stop collection into 540 tubes   • Choose from six basic collection modes: time, drop, peak, time program, signal program and manual   • Select frhttp://live.labwrench.com/?equipment.addom nine combined modes for maximum peak purity and sub-fractionation of selected peaks   • Free vessel programming and storage of up to nine fractionation files   • Optional three-way diverter valve is available to help reduce the risk of contamination
General Specifications

There are no General Specifications available.

Additional Specifications

Time-Based Programming: Up to 20 collection windows and 20 drain steps
Multiple-Cycle Operation:Up to 99 cycles for repetitive collection of same sample or automatic collection of different samples
Display Panel: 16 alphanumeric characters plus decimal point
Communication Interface:Nine inputs, seven outputs (including two programmable via 25-pin connector) for injector, elution pump, recorder, three-way valve, and system shut-off
Collection Vessels & Capacity:220 18-mm test tubes
300 13-mm test tubes
540 10-mm test tubes
40 user-defined vessels
Keypad Location:Separate
Method Storage:Up to 10 fractionation files
Peak Collection: Adaptive slope algorithm accommodates drifting baselines, negative and asymmetrical peaks, applying user-set peak parameters. Thirty peaks out of 99 can be selected
Software: Via Gilson UniPoint™ System Software or keypad controller
Operating Temperature:0 to 40°C
Event Marker:210 ms pulse by contact closure
Detector Input:±10 or 100 mV full scale
Dimensions (w x d x h):51 x 44 x 23 cm (20.1 x 17.3 x 9 in.)
Keypad Controller Dimensions (w x d x h):21.5 x 11 x 3.3 cm (8.5 x 4.3 x 1.3 in.)
Weight: 8 kg (18 lbs.)
