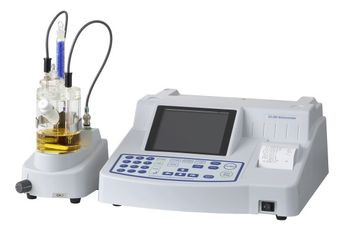

Cosa Xentaur - CA-200
Manufactured by Cosa Xentaur
Coulometric Karl Fischer Moisture Meter
The CA-200 continues the legacy, providing the user the ultimate in simplicity and flexibility for both Karl Fischer and Potentiometric Titration. The airtight ground glass one piece titration cell provides near zero background levels of moisture and can be used with either a fritted or frittless cathode solution cell. The CA-200 can simultaneously measure Karl Fischer moisture in two cells when configured with the dual channel option and two separate titration cells. The titration cells can be coulometric, volumetric or a combination of both depending on ones application needs. Samples which directly interfere with Karl Fischer are easily analyzed when combined with one of our specialty water vaporizers. General potentiometric titrations are also possible when the GT-Option is used as a primary or secondary channel. Bromine Number and Bromine Index can also be measured with the CA-200. ASTM, ISO, DIN, JIS & UOP methodologies are all possible with the CA-200; truly the ultimate coulometric moisture meter.
Active Questions & AnswersAsk a Question
There are no current Discussions
Titrators Service ProvidersView All (5)
Documents & ManualsView All Documents
Features of CA-200
- Analyze 1 ppm – 100% Water In Any Matrix
- Simultaneously Measure & Display Coulometric & Volumetric Karl Fischer Moisture
- Perform General Potentiometric Titrations and KF analysis Simultaneously with the GT-Option
- Perform Bromine Index and Bromine Number
- Large, easy to read 5.7 inch Color LCD Display
- Flexible Configuration & Small Footprint Saves Valuable Bench Space
- Password Protected Administrative User Levels and Functions
- 21CFR Part 11 Controller Compliant Software
General Specifications
| Depth | 320 mm |
| Height | 148 mm |
| Width | 330 mm |
| Power Requirements | AC 100-200V, 220-240V, 50/60Hz |
| Peak Power | 310 VA @ 220-240V |
| Weight | 5 kg |
| Titrator Type | Karl Fischer Coulometric |
