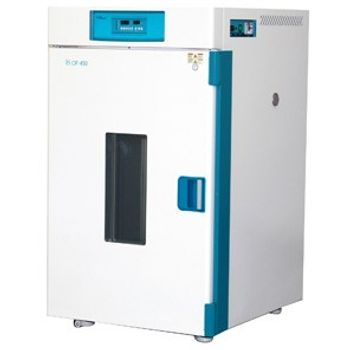

Jeio Tech - OF-G/H Series
Manufactured by Jeio Tech
No Documents
Forced Convection Ovens (Large Type)
Available efficient large volume general purpose type ovens up to 760 liters and with fast drying performance. (200? or 300?)
The large high-performance oven types are designed for a wide variety of applications, even for intensive use. Also, the precise temperature control and powerful quickly heated air with evenly distributed air-flow, makes it possible for receiving immediate test results.
The large high-performance oven types are designed for a wide variety of applications, even for intensive use. Also, the precise temperature control and powerful quickly heated air with evenly distributed air-flow, makes it possible for receiving immediate test results.
Active Questions & AnswersAsk a Question
There are no current Discussions
Lab Ovens Service ProvidersView All (15)
Documents & Manuals
There are no Documents or Manuals available.
Features of OF-G/H Series
Operating features
- +10? above room temperature to 200?.(OF-G series) +10? above room temperature to 300?.(OF-H series)
- Microprocess PID control / Auto-tuning / Calibration.
- Digital timer: 1 min ~ 99 hr 59 min, Delayed ON / OFF.
- Over temperature limiter / Door opening alarm.
- Conveniently preset 3 most commonly used temperature settings.
- Selective Auto Run function after power recovery.
- LED display (1? resolution) using touch-sensitive keypads.
- RS-232 interface available.
- Forced-air convectionwith two noiseless sirocco fan which ensures good mixing and strong dispersion.
- Optimized sample monitoring with threefold tempered safety glass window. (optional)
- Adjustable 2 side ventilation slides to control inner air, vapor circulation. (dia 38mm/1.5″)
- 5 steps fan speed adjuster can be control inner circulation speed.
- Rounded inner chamber corners for easy cleaning and uniformed air flow.
- Casters easily make the unit mobile.
- Recorder.(optional) - 6-point dot type recorder with a digital display. - Thermal line type recorder.
- Large size chamber with a maximum volume of 760L. (28.8cu ft)
General Specifications
There are no General Specifications available.
Series Modals
Jeio Tech - OF-300G/H
[+] View Model Specifications| Depth | 1020 mm |
| Height | 1225 mm |
| Internal Depth | 650 mm |
| Internal Height | 750 mm |
| Width | 835 mm |
| Internal Width | 645 mm |
| Power Requirements | 230V, 1 ph, 50 / 60 Hz |
| Chamber Volume | 314 L |
| Oven Type | Mechanical Convection |
| Weight | 175 kg |
| Additional Model Specifications |
Jeio Tech - OF-450G/H
[+] View Model Specifications| Depth | 1020 mm |
| Height | 1505 mm |
| Internal Depth | 750 mm |
| Internal Height | 930 mm |
| Width | 835 mm |
| Internal Width | 645 mm |
| Chamber Volume | 450 L |
| Oven Type | Mechanical Convection |
| Weight | 210 kg |
| Temperature Precision | 200 °C |
| Additional Model Specifications |
Jeio Tech - OF-750G/H
[+] View Model Specifications| Internal Depth | 850 mm |
| Internal Height | 1200 mm |
| Internal Width | 745 mm |
| Chamber Volume | 760 L |
| Oven Type | Mechanical Convection |
| Shipping Weight | 280 kg |
| Additional Model Specifications |
