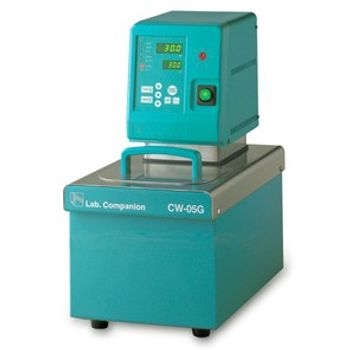

Jeio Tech - CW-G series

Manufactured by Jeio Tech

No Documents

CW-G series is designed for controlling temperature in external instruments, or for immersion purposes. Pump has five adjustable pressure stages.

There are no current Discussions

Circulators / Chillers Service ProvidersView All (6)

Manuals & DocumentsFeaturesSpecifications

There are no Documents or Manuals available.

Operating features

5? above room temperature to 150?.
Microprocessor PID control / Auto-tuning / Calibration.
Digital timer : 1 min to 99 hr 59 min, delayed ON / OFF.
Over-temperature limit and low fluid level protection.
Conveniently preset 3 most commonly used temperature settings, without auto-tuning.
Digital LED display (0.1? resolution) with splash-proof keypads.
RS-232 interface available.

Constructional features

Variable-speed pump for liquid viscosity for accurate, stable, and efficient temperature management. (1 to 3 steps of pump for internal circulation / 4 and 5 steps for external circulation)
Powerful pressure and suction pumps provide contrast pressure and flow rate throughout the whole temperature range.
Baffle plate screens circulating pump, heater and sensor to minimize shaking bath fluids and protect sample and operators from direct contact.
Dry-running protection; automated heating element cut-off and audible and visual warning.
Seamless stainless steel tank with a reservoir drain that resists corrosion and make cleaning easy.
Space saving design uses minimal bench space.

There are no General Specifications available.

Jeio Tech - CW-05G

Jeio Tech - CW-10G

Jeio Tech - CW-20G

Jeio Tech - CW-30G

Looking for New or Used Equipment?

Depth	15.6 in
Flow Rate	28 L/min
Height	16.7 in
Internal Depth	6.3 in
Temperature Range	5 to 150 °C
Internal Height	3.9 in
Reservoir Volume	5 L
Width	8.7 in
Internal Width	5.9 in
Power Requirements	230V, 60Hz, 4.5A - 120V, 50Hz, 8.6A
Temperature Stability	0.05 °C
Temperature System	Heating
Weight	27.6 lbs
Additional Model Specifications

Depth	17.7 in
Flow Rate	28 L/min
Height	17.5 in
Internal Depth	7.1 in
Temperature Range	5 to 150 °C
Internal Height	6.1 in
Reservoir Volume	10 L
Width	11.1 in
Internal Width	8.3 in
Power Requirements	230V, 60Hz, 6.7A - 120V, 50Hz, 8.6A
Temperature Stability	0.05 °C
Temperature System	Heating
Weight	33 lbs
Additional Model Specifications

Depth	20.1 in
Flow Rate	28 L/min
Height	18.3 in
Internal Depth	7.9 in
Temperature Range	5 to 150 °C
Internal Height	8.4 in
Reservoir Volume	20 L
Width	14.2 in
Internal Width	11.4 in
Power Requirements	230V, 60Hz, 8.8A - 120V, 50Hz, 8.6A
Temperature Stability	0.1 °C
Temperature System	Heating
Weight	38.6 lbs
Additional Model Specifications

Depth	22 in
Flow Rate	28 L/min
Height	19.4 in
Internal Depth	9 in
Temperature Range	5 to 150 °C
Internal Height	10.4 in
Reservoir Volume	30 L
Width	14.6 in
Internal Width	11.8 in
Power Requirements	230V, 60Hz, 8.8A - 120V, 50Hz, 8.6A
Temperature Stability	0.1 °C
Temperature System	Heating
Weight	43 lbs
Additional Model Specifications
