This product is Discontinued

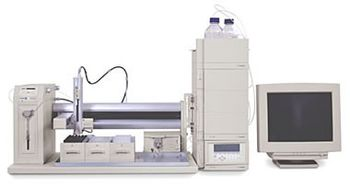

Gilson - 215
Manufactured by Gilson
No Documents
The 215 Direct-Inject System helps meet the demands of smaller HPLC or LC/MS injection volumes.
The 215 Direct-Inject System helps meet the demands of smaller HPLC or LC/MS injection volumes.
Active Questions & AnswersAsk a Question
There are no current Discussions
Preparative HPLC Service ProvidersView All (16)
Documents & Manuals
There are no Documents or Manuals available.
Features of 215
- Rheodyne’s rocket valve allows for fast, low-dead-volume direct injection-system is designed to load samples directly into the valve
- Low dead volume with direct injection decreases carryover and increases injection reproducibility
- Large bed can accomodate up to 17 microplates
- Add a second injection module for increased throughput
General Specifications
| Maximum Pressure | 8700 psi |
| Standard Flow Rate | 0.0002 to 30 ml/min |
Additional Specifications
Sample Loading Capacity: 15–75 mg
Optimal Column Size: 2.0–10 mm
Maximum Injection Pressure: 5,000 psi (345 bar)
Maximum Pump Pressure: H1 8,700 psi (600 bar); H2: 4,350 psi (300 bar)
