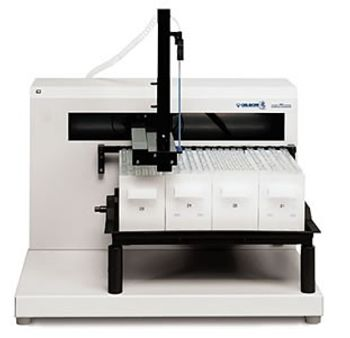

Gilson - 223 Sample Charger

Manufactured by  Gilson
Follow this Equipment

Programmable sampler for automated sample preparation and transfer.

Programmable sampler for automated sample preparation and transfer. The 223 is the perfect solution for protocols such as serial dilutions, addition of samples, sampling into vials, timed reactions, and tube-to-tube transfers.
Active Questions & AnswersAsk a Question
1Replies

223 Sample Charger

Recent Questions & Answers

avatar placemark

Updated byPipetman

223 Sample Charger
View All Questions & Answers (1)

Sample Preparation Service ProvidersView All (4)

Request Support
Documents & Manuals

There are no Documents or Manuals available.

Features of 223 Sample Charger

  • Ideal for automated transfer of samples in analytical techniques like FIA and spectroscopy (UV/Vis, AA, ICP)
  • Level-sensing and user-selectable rinsing parameters help eliminate sample contamination due to carryover
  • Operate with the Minipuls 3 Pump or the 402 Syringe Pump
  • Accommodates a maximum of 432 vials (7 x 40 mm or 10 x 75 mm)
  • Choose from a wide variety of probe designs and standard and custom racks
  • Optional flow-through rinse station available
  • New spring-loaded probe is ideal for low- and sub-microliter liquid handling applications including MALDI plate preparation
General Specifications
Depth 17.2 in
Height24 in
Width 21.1 in
Weight18.6 kg
Additional Specifications

Power Requirements: Frequency: 50–60 Hz Voltage: 90–120 or 220–240V, mains voltage fluctuations not to exceed ±10% of the nominal voltage
Current rating: one 2.0A fuse for 100–120V or two 2.0A fuses for 220–240V
Manufacturing Standards: Meets applicable safety and EMC certification standards; UL and CE certified
Arm Speed: X/Y: 25 cm/sec (9.9 in./sec)
Z: 2.0, 3.0, 6.2, 12.7, 24.7 cm/sec (0.79, 1.18, 2.44, 5.00, 9.72 in./sec)
Communication: Interface RS-232 or GSIOC; Four inputs (contact closure, TTL, or open-collector), four relay outputs and one switched +24V DC (500 mA max.) output
Liquid Handling Reproducibility:
0.8% CV at 10 µL
Accuracy: 98.2% at 10 µL
Front Panel: One yellow LED indicator light
Horizontal Motion Strength X: 2 kg (5 lbs.)
Y: 1.5 kg (3 lbs.)
Maximum Number of Vials: 432 (7 x 40 mm or 10 x 75 mm)
Number of Racks: Up to four Code 20- or 30-Series racks
Probe Positioning Performance Accuracy: ±1 mm in X/Y/Z dimensions
Repeatability: ±0.25 mm in X/Y/Z dimensions
Probe Rinse: Through a dedicated rinse station for rinsing the inside and outside of the probe
Sampler Type: X/Y/Z with stationary rack design
Software: Via Gilson TRILUTION™ Software
Vertical Punch Strength: 1 kg (2 lbs.)
