Sineo - MDS-8G
Manufactured by Sineo

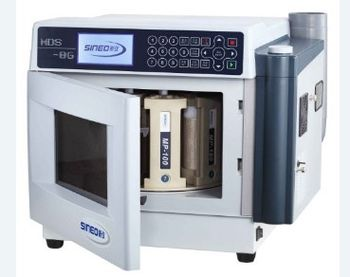

Closed Vessel Microwave Chemistry Workstation
MDS-8G Closed Vessel Microwave Digestion/Extraction System is a microwave chemical sample preparation equipment with excellent performance and reliable quality which is manufactured by improving the original MDS-8 closed vessel microwave chemistry workstation with newest materials and production technique by Sineo Microwave Chemistry Technology (China) Co., Ltd. Outer vessel made of super aerospace composite fiber material, which is only equipped for current international high-end microwave chemical apparatuses is applied in MDS-8G; it has light weight, durable performance and strong transverse impact-proof; it cannot have be cracked or broken under the action of explosion; its strength is higher than all other polymer engineering plastics and even steels. In this way, fusible, inflammable and explosive defects of polymeric plastic under high temperature and pressure are eliminated thoroughly and safety of operation is improved greatly. The MDS-8G high throughput microwave digestion/extraction system is applicable to microwave digestion, extraction, synthesis and many other application fields.
Active Questions & AnswersAsk a Question
There are no current Discussions
Microwave Digesters Service ProvidersView All (5)
Documents & ManualsView All Documents
Features of MDS-8G
- Outer vessel is made up of super aerospace composite fiber material with independent research and development. The outer vessel cannot be broken, torn and cracked under the action of explosion, and meanwhile it is provided with various features of corrosion resistance, high-temperature resistance, and impact resistance, pressure-withstanding. Thus, it far exceeds the outer vessel manufactured with PEEK and fundamentally resolves the potential safety hazard during the use by operators.
- The combined application of quantified vertical blast pressure-relief technology and outer vessel made of composite fiber material do avoid the personal injury and damage to instruments caused by traverse bursting due to sudden reaction or violated sample-preparation during digestion. Thus, this product can be really compliant with safety design concept of vertical blast.
- The instrument adopts piezoelectric crystal sensing and highprecision temperature sensing up to international advanced level capable of improving the accuracy for pressure and temperature measurement. The piezoelectric crystal sensing technology can allow the sample in master vessel to be completely isolated during pressure measurement to prevent several problems such as leakage from traditional gas-guide tube and enclosed interface of waterline pressure and cross contamination of samples.
- The instrument maintains the non-pulse continuous microwave heating technology and ideally achieves the automatic closed-loop control of microwave power based on pressure and temperature feedback in order to realize the purpose of accurate control on reaction parameters and accurate display for congruent relationship between pressure and temperature and changing process during reaction. Meanwhile, trend curve of pressure, temperature and time can be switched into from time to time for the convenience of observation and analysis of operators.
- Combined passive protection measures, pop-up buffer safe anti-explosion sliding chamber door and high-strength safe protective cover forms the vertical security and protection system to allow the operators to feel relieved.
General Specifications
| Depth | 520 mm |
| Height | 490 mm |
| Microwave Frequency | 2450 MHz |
| Microwave Output Power | 1200 W |
| Width | 540 mm |
| Power Requirements | 220 VAC 50/60Hz 12A |
| Peak Power | 2600 W |
| Weight | 40 kg |
| Control Pressure | 1500 psi |
| Control Temperature | 300 °C |
Additional Specifications
Outer sample reaction vessel: Anti-explosion outer vessel made of composite fiber which cannot be cracked, broken or torn under the action of explosion
Inner sample reaction vessel: TFM material
Exhaust air rate: 5.5m3/min
