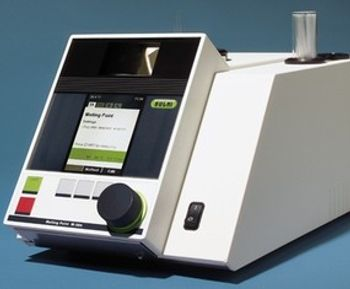

BUCHI Corporation - M-560
Manufactured by BUCHI Corporation
Manual melting point determination for universities and research laboratories
The attractively priced Melting Point M-560 for manual determination of melting and boiling points is designed for all laboratories with moderate requirements for sample processing in a non-regulated environment.
Active Questions & AnswersAsk a Question
There are no current Discussions
Need Equipment Support?
Documents & ManualsView All Documents
Features of M-560
- Large illuminated magnification lens
- Manual melting and boiling point determination
- Frequency indicator for boiling point determinations
- Fully guided 4 point calibration
- Shorter heat up and cool down times
- Heating block protective coating allows for easy cleaning and extended lifetime
- Compliant with Pharmacopeia methods including PH. EUR. 6.1.2.2.60, USP XXI 741 and JP
- Easy to clean front glass panel
- Temperature range between room temperature and 400 °C
- Analyze up to 3 samples simultaneously
General Specifications
| Boiling Point | 1 (manual) |
| Depth | 370 mm |
| Height | 200 mm |
| Width | 190 mm |
| Power Requirements | 100-240V (+/-10%), 50 - 60 Hz |
| Weight | 4.5 kg |
| Cool Down Time | 13 min (350°C-50°C) |
| Heat Up Time | 4 min (50°C-350°C) |
| Lens Magnification | 2.5 x |
| Positions for Boiling Point Capillaries | 1 |
| Positions for Melting Point Capillaries | 3 |
Additional Specifications
Storable methods for melting and boiling points: 50
Display: Colour, TFT, 320x240, 3.5"
Determination temperature range: ambient + 10°C to 400°C
