This product is Discontinued

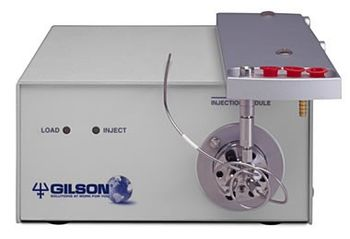

Gilson - 819
Manufactured by Gilson
The 819 Injection Module enables you to inject samples onto Gilson's 215 Liquid Handler.
The 819 Injection Module enables you to inject samples onto Gilson's 215 Liquid Handler. The module contains a high-pressure, two-position switching valve that can also be used for fraction collection. It is an effective way to collect fractions when the flow rate is higher than 20 mL/min.
Active Questions & AnswersAsk a Question
There are no current Discussions
Microplate Dispensers Service ProvidersView All (6)
Documents & ManualsView All Documents
Features of 819
- Carryover is less than 0.01%
- Ideal for analytical to preparative injections
- Make-before-break rotor seal design prevents pressure spikes from injection when operating at high flow rates
General Specifications
| Depth | 20 cm (8 in.) |
| Height | 10 cm (4 in.) |
| Width | 19 cm (7.5 in.) |
| Power Requirements | 100-120 or 220-240 V, 1.0 A for 100-120 V or 5.0 A for 220-240 V; 47-63 Hz |
| Weight | 4 kg (9 lbs) with installed valved |
Additional Specifications
Valve Switching Speed: <500 ms
Injection Reproducibility*: <0.9% CV with 1-mL syringe and total loop filling method
Injection Carryover*: <0.01%
Available Valve: Rheodyne 7010
Available Sample Loops: 5, 10, 20, 50, 100 and 200 µL; 1, 2 and 5 mL
Front Panel: LOAD and INJECT LED indicator lights
Communication Interface: RS-232 or GSIOC; one contact closure output and one contact closure input
Liquid-Contact Materials: 316L and 304 stainless steel, FEP, PEEK
Software: Via Gilson UniPoint™ System Software or 735 Sampler Software
