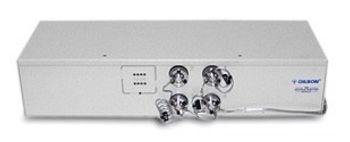

Features of 849

General Specifications

There are no General Specifications available.

Additional Specifications

Manufacturing Standards Meets applicable safety and EMC certification standards; UL and CE certified
Available Sample Loops 5, 10, 20, 50, 100, 200 or 500 µL; 1, 2 or 5 mL
Available Valves Rheodyne RV700-100 or Rheodyne RV700-112
Carryover† RV700-100 Valve
• <1 ppb with the following rinse volumes:
– injection port rinse volume=250 µL
– rinse station rinse volume=500 µL
RV700-112 Valve
• <0.05% with the following rinse volumes:
– injection port rinse volume=1000 µL
– rinse station volume=1000 µL
Dead Volume Injection Port Dead Volume* (µL)
0.7 mm OD probe tip 11
1.3 mm OD probe tip 15
1.5 mm OD probe tip 14

* From probe to valve (including calibrated tubing)
Environmental Conditions
Front Panel Power light, 4 INJECT lights and 4 LOAD lights
Liquid-Contact Materials 304 and 316L stainless steel, alumina ceramic, FEP, PEEK
Power Requirements Frequency: 50–60 Hz
Voltage: 90–240V; mains voltage fluctuations not to exceed ±10% of the nominal voltage
Current rating: 2.0A for 90–120V or 1.0A for 220–240V (849); 3.0A for 90–120V or 1.5A or 220–240V (889)
Precision† RV700-100 Valve
• Partial loop fill: CV <2.0% with a 500-µL syringe and 10-µL partial loop fill in a 20-µL injection loop
• Total loop fill: CV <5.0%
RV700-112 Valve
• Partial loop fill: CV <2.0% with a 5-mL syringe and 1-mL partial loop fill in a 2-mL injection loop
• Total loop fill: CV <5.0%
Communication Interface GSIOC
Valve Switching Speed RV700-100: <135 mS
RV700-112: <370 mS
Dimensions (w x d x h) 61 x 18 x 13 cm (24 x 7 x 5 in.)
Weight (with installed valves) 7.7 kg (17 lbs.) with four installed valves


† Contact Gilson service to learn what method was used to obtain the value.
