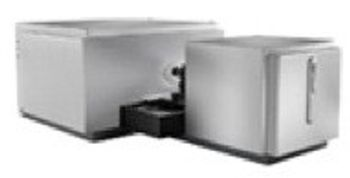

Agilent Technologies - 7010
Manufactured by Agilent Technologies
No Documents
The Agilent 7010 Particle Size Analyzer provides high speed particle size measurements on particles ranging from 5 nm...
The Agilent 7010 Particle Size Analyzer provides high speed particle size measurements on particles ranging from 5 nm to 15 µm. Using a proven UV-VIS spectrophotometer platform with a high-speed photodiode array and Mie scattering software; the 7010 makes high precision measurements in only 5 seconds. The 7010 brings a new, innovative approach to particle analysis that distinguishes multiple particle size distributions in complex mixtures.
Active Questions & AnswersAsk a Question
There are no current Discussions
Particle Size Analyzers Service ProvidersView All (2)
Documents & Manuals
There are no Documents or Manuals available.
Features of 7010
- Particle size spectrophotometry – learn more
- High speed size measurements from 5 nm to 15 µm
- Reliable results in only 5 seconds
- Resolves multi-modal distributions of complex mixtures as close as 1:1.5
- Accommodates small sample volumes as low as 3 µL
- Minimal sample prep and clean-up
- System includes computer, software, manuals, interface, and instrument
General Specifications
| Detector | 1024-Element Diode Array |
| Size | 5 to 15 µm |
| Measurement Time | less than 5 seconds |
| Light Source | Deuterium and Tungsten Lamps |
