This product is Discontinued

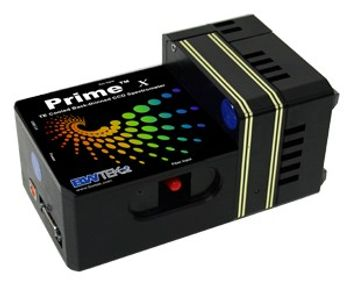

B&W Tek - Prime™ X

Manufactured by  B&W Tek
Follow this Equipment

The Prime X is a high-performance linearly summed spectrometer featuring a high sensitivity TE Cooled...

The Prime X is a high-performance linearly summed spectrometer featuring a high sensitivity TE Cooled Back-thinned 512 x 58 CCD array (standard). A 1024 CCD array is available for increased range and resolution. Both spectrometer versions contain a fiber-coupled input, built-in 16-bit digitizer, external trigger and high speed USB 2.0 interface.     With its high dynamic range and high signal-to-noise ratio, low dark counts and long term operational stability, this model will meet your UV to NIR application needs.     Flexible custom configurations and application support are available for OEM applications.     Model: BTC611E
Active Questions & AnswersAsk a Question

There are no current Discussions

UV/VIS Spectrophotometers Service ProvidersView All (32)

Request Support
Features of Prime™ X

  • Over 60% QE down at 200 nm
  • Over 90% peak QE
  • High UV, Vis, and NIR response
  • Line and pixel binning for superior S/N enhancement
  • TE cooled 512 x 64 elements (default)
  • Optional shutter available
         Applications

  • Low light level UV and NIR spectroscopy
  • Raman and fluorescence spectroscopy
  • Remote sensing
  • DNA sequencing
  • Semiconductor end point inspection
  • LED sorting and characterizations
  • LCD display measurements
General Specifications
Depth 123 mm
Height160 mm
Width 129 mm
Power Requirements 100 - 240V AC 50/60 Hz, via accompanying power supply
Weight5 lbs
Photodetector Diode Array
Additional Specifications

CCD cooling temperature: 0°C (Standard)
CCD full well depth: 300,000 (V) and 600,000 (H) electrons
CCD dynamic range: 75,000 with line binning
Spectral coverage: 100, 200, 400, 700 nm or custom in 190 - 1100 nm
Spectrograph f#: 3.3
Spectrograph optical layout: Crossed Czerny-Turner
Grating: 200-1200 lines/mm available with different blaze wavelengths
Slit: 25-400 µm width dependent on resolution requirements
(slit height : 1000 µm)
Optical resolution: 0.3 to > 10 nm FWHM
Digitizer resolution: 16 bit
Digitizer speed: > 250 KHz
Computer interface: USB 1.1/2.0
Operating software: Windows Me, 2000, and XP compatible
Power Supply Unit Dimensions: 167(W) x 229(D) x 57(H) mm
