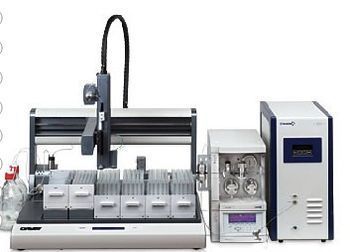

Gilson - GX-281 Liquid Handler
No Documents
The new GX-281 Liquid Handler features a revolutionary solvent delivery system.
The GX-281 Liquid Handler is a large capacity versitile platform that can be configured for injection, fraction collection, and re-injection as part of a Gilson purification system or a flexible liquid handler with optional accessories such as tube grippers, balances, and bar code readers for performing a wide veriety of automated unattended liquid handling applications.
The GX-281 Liquid Handler and autosampler offers unmatched versatility and performance for liquid handling operations including injection, fraction collection and re-injection. The instrument features a revolutionary syringeless solvent delivery system that accommodates various volumes and flow rates. The GX Solvent System features an innovative technology that allows for a large dynamic working range of 2 µL to 100 mL and flow rates of 1 µL/min to 25 mL/min.
Active Questions & AnswersAsk a Question
There are no current Discussions
Preparative HPLC Service ProvidersView All (16)
Documents & Manuals
There are no Documents or Manuals available.
Features of GX-281 Liquid Handler
- Revolutionary GX Solvent System on an innovative autosampler: no syringes to replace or change to accommodate different volumes and flow rates; allows for immediate access to up to five solvents and provides a large dynamic volume and flow rate range
- Continuous flow path design on all injection valves for flow rates up to 200 mL/min: allows system flow to continue even as the injection valve switches from load to inject, ensuring consistent pressure and flow
- Direct Injection Module features an injection port that is integrated into the valve: removes a source of potential carryover, reduces rinsing times, sample waste and X/Y travel for quicker injection cycle times
- Enhanced bed capacity over other similar liquid handlers — uses only 33" of linear bench space: holds up to six Code 200 Series Racks with an efficient bed design
- Separate injection and collection pathways: ensures that fractions are never contaminated from the injection process
- Jet Wash Rinse system includes a high-flow rinse pump: provides fast and efficient probe cleaning with up to six rinse solvents
General Specifications
| Depth | 30 in |
| Height | 38 in |
| Width | 35 in |
| Power Requirements | 100-240V, 50-60Hz |
| Peak Power | 500 W |
| Weight | 150 lbs |
| Dispensing Type | Integrated Workstation |
| Workstation Type | Multi-function |
Additional Specifications
Manufacturing Standards: Meets applicable safety and EMC certification standards; UL and CE certified
Arm Speed: X and Y: 0.01-600.00 mm/sec; Z: 0.01-125.00 mm/sec
Communication Interface: RS-232 or GSIOC; Four inputs (contact closure, TTL), four relay outputs, four switched +24V DC 1A outputs, one safety input and one analog input
Liquid Handling:†
Reproducibility: 100 mL
*For volumes below 100 µL, Liquid Handling and Injection specifications may differ from those listed above.
Flow Rate: Up to 25 mL/min
Liquid Contact Materials: Valcon H, Nitronic 60 (N60), PTFE
Vertical Punch Strength: 4.5 kg (10 lbs.)
Display Panel: Two lines of 40 alphanumeric characters, vacuum fluorescent display
† Contact Gilson Customer Service to learn what methods and conditions were used to obtain the values.
