This product is Discontinued

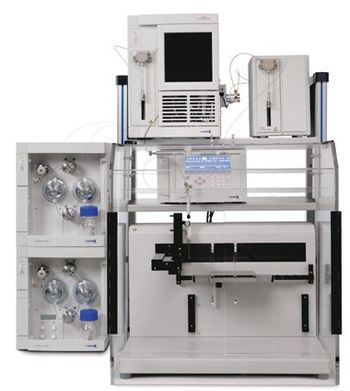

Gilson - MALDILC System
Manufactured by Gilson
No Documents
Gilson's new MALDILC™ System is designed to perform nano to microbore HPLC with fraction collection and simultaneous matrix addition onto MALDI plates
Gilson's new MALDILC™ System is designed to perform nano to microbore HPLC with fraction collection and simultaneous matrix addition onto MALDI plates. The plated fractions can then be analyzed repeatedly by MALDI-TOF MS. The Gilson MALDILC System is an ideal preparation technique for easily automating what is a historically manual procedure.
Active Questions & AnswersAsk a Question
There are no current Discussions
HPLC Systems Service ProvidersView All (54)
Documents & Manuals
There are no Documents or Manuals available.
Features of MALDILC System
- Nano, capillary and micro HPLC with fraction collection directly to MALDI targets
- On-line matrix addition with mixing
- HPLC-coupled fraction collection simplifies complex tryptic digests, providing more readable mass spectra
- Compatible with most MALDI target formats
- 350 Micro Pumps deliver accurate and reliable flow rates (300 nL/min to 50 µL/min) without splitting flow
General Specifications
| Maximum Pressure | 4350 psi |
| Standard Flow Rate | 0.3 to 50 ml/min |
Additional Specifications
Sample Loading Capacity: 0.1 ng–200 µg, 0.5–100 µL
Optimal Column Size: 180 µm–1 mm
Flow Rate: 0.3–50 µL/min
Maximum Injection Pressure: 5,000 psi (345 bar)
Maximum Pump Pressure: 4,350 psi (300 bar)
Matrix Compatibility: THAP, HPA, CHCA, SA, HABA, DHB
