This product is Discontinued

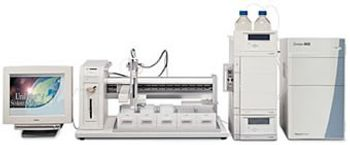

Gilson - NEBULA Series LC/MS Autopurification System
Manufactured by Gilson
No Documents
Gilson's NEBULA™ Series LC/MS Autopurification System is designed for selective semi-preparative applications.
Gilson's NEBULA™ Series LC/MS Autopurification System is designed for selective semi-preparative applications. The source of the MSQ provides a rugged interface to the mass analyzer and can run for extended periods between cleaning.
Active Questions & AnswersAsk a Question
There are no current Discussions
LC-MS Systems Service ProvidersView All (41)
Documents & Manuals
There are no Documents or Manuals available.
Features of NEBULA Series LC/MS Autopurification System
- Easy-to-use, UV- or mass-based purification system
- Injection and fraction collection on the same bed
- Real-time traces both from MS and UV for on-screen comparison
- Chromatographic trace is generated from the summed extracted ion chromatogram of up to seven masses
- MS interface is ideal for non-volatile buffers, enabling continuous operation for weeks
- Ability to add samples on the fly for increased flexibility
- Collection by slope, level, time and drop. Collection can be set for peaks and non-peaks
- Advanced reporting allows the mass labelling of each peak with optional background-subtracted base peak
- VALVEMATE® Valve Actuator provides automatic column switching capability to maximize throughput
- Full-scan MS data collection leads to greater confidence in identification of collected fractions
- Performs both negative and positive ionization
General Specifications
| Standard Flow Rate | 0.2 to 30 ml/min |
Additional Specifications
Sample Loading Capacity: 50 mg/mL with 1:1000 splitter
Optimal Column Size: 4.6–20 mm
Maximum Injection Pressure: 5,000 psi (345 bar)
Maximum Pump Pressure: H1: 8,700 psi (600 bar); H2: 4,350 psi (300 bar)
