This product is Discontinued

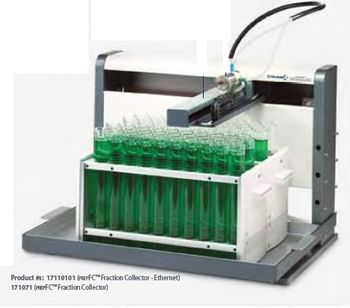

Gilson - PrepFC Fraction Collector

Manufactured by Gilson

No Documents

Preparative fraction collector with the ability to collect at flow rates up to 200 mL/min.

The Gilson prepFC™ fraction collector is the latest (as of Aug. 2009) preparative fraction collector with the ability to collect at flow rates up to 200 mL/min. It has a narrow footprint and a innovative simplistic method for elevating the tray to accommodate a large range of vessel sizes.

Active Questions & AnswersAsk a Question

Need Equipment Support?

Request Support

Manuals & DocumentsFeaturesSpecifications

Documents & Manuals

There are no Documents or Manuals available.

Features of PrepFC Fraction Collector

• Can accommodate two Code 200, four Code 20 or one Code 90 Series Rack(s). The capability of the Code 90 Series Racks allows for collection into vessels as large as one liter, a distinct advantage over funnels in that it does not promote contamination issues that can come with collecting into the same funnels and funnel tubes. • Small footprint with large capacity (w)19.8” x (d) 15.4” x (h) 13.7”, and able to fit into almost any size fume hood. • Four adjustable height settings for the pan location which allows for tube heights up to 200 mm, which optimizes fraction collection by enabling closer configuration of dispensing probe to the tube top. • Vessel capacity per prepFC: – (320) 13 x 100 mm (9 mL) test tubes with four Code 343 Racks – (192) 16 x 100 mm test tubes with two Code 223 Racks – (176) 18 x 150 mm test tubes with four Code 22 Racks – (80) 25 x 200 mm test tubes with two Code 239 Racks – (54) 28 x 57 mm (25 mL) scintillation vials with two Code 204 Racks – (54) 30 x 115 mm (50 mL) conical bottom tubes with two Code 222 Racks – (18) 48 x 113 mm (125 mL) bottles with two Code 211 Racks – (11) 500 mL bottles with one Code 91 Rack – (8) 1 liter bottles with one Code 92 Rack – (240) 12 x 32 mm (2 mL) vials with four Code 330 Racks – (56) 20 mL scintillation vials with four Code 333 Racks – (432) 10 x 75 mm (4 mL) tubes with four Code 341 Racks – (320) 13 x 100 (9 mL) tubes with four Code 343 Racks – (176) 16 x 150 mm (20 mL) tubes with four Code 345 Racks • Comes standard with a high-flow collection valve for accommodating flow rates up to 200 mL/min. • Increased X/Y speed decreases time spent moving from tube-to-tube which reduces sample loss. • Has the ability to connect up to four fraction collectors, expanding capacity to over 1280 samples. • prepFC Control Software provides control of all aspects of fraction collection including creating and adding custom racks, setting parameters, modes and windows, selecting user-defined collection patterns and more. • prepFC Control Software features up to ten collection windows with individually set parameters and allows for collection via slope, level, time or volume with peak subdivision via time or volume as well as offers slope collection that has front and tail slope settings to optimize collection and runs off-scale peak collection. • Gilson offers a prepFC System Organizer capable of housing up to four fraction collectors, minimizing linear bench space and optimizing tubing requirements.

General Specifications

There are no General Specifications available.

Additional Specifications

3-way ValveThree-port, PTFE, 114 µL internal volume, 10 µL dead volume, up to 200 mL/min
Maximum Collection Volume/Tube 1000 mL (Kimax or Pyrex bottles with Code 92 rack)
Maximum Fractions960 of 13 x 100 mm test tubes with the use of 3 additional expansion units and Code 20-Series racks
Multiple-Cycle OperationWith Trilution™ LC Software: Repetitive collection of each sample into same set of tubes or collection of each sample into different set of tubes
Detector InputAnalog input ±1V range with 30 µV resolution (16-bit resolution)

Operating ModesUse Trilution™ LC Software (Time, Volume, Peak Slope, Peak Level)
Peak DetectionAdaptive-slope algorithm that applies user-specified parameters to accommodate drifting baselines, negative and asymmetrical peaks, or absolute threshold level that collects all peaks above specified mV value
Peak ParametersPeak level: in mV with 0.01 mV resolution
Nominal peak width (at half-height): in minutes
Peak slope: in 0 to 90°
Delay setting: in 0.01 minute increments

Programmable Time Units0.01 to 999.9 minutes
Software ControlComputer control via RS-232 or GSIOC and Trilution™ LC Software
Time-Based ProgrammingUp to 9 collection windows with independent collection settings for each collection window
Tube Change Time 100-250 msec, center-to-center, depending on rack type

Number of RacksHolds up to four Code 20-series racks, up to two Code 200-series racks or one Code 90-series rack
Vessel Capacity/Unit (does not reflect expansion units)Quantity 240 of 13 x 100 mm (10 mL) test tubes
Quantity 192 of 16 x 100 mm tubes
Quantity 176 of 18 x 150 mm test tubes
Quantity 80 of 25 x 200 mm test tubes
Quantity 27 of 28 x 57 mm (25 mL) scintillation vials
Quantity 54 of 30 x 115 (50 mL) conical bottom tubes
Quantity 18 of 48 x 113 mm (125 mL) bottles
Quantity 11 of 500 mL bottles
Quantity 8 of 1 liter bottles

Expansion UnitsUp to 3 additional expansion units
Communication InterfaceGSIOC; Inputs for start/advance/end/divert; output for control of peripheral devices
Liquid Contact MaterialsPTFE and 316 stainless steel
Power RequirementsFrequency: 50/60 Hz
Voltage: 100-240V, main voltage fluctuations not to exceed 10% of the nominal voltage
Current rating: 0.50A for 100-120V or 0.25A for 220-240V
Environmental Conditions Indoor use
Altitude: up to 2000m
Temperature range: 5° - 40°C,
Air pressure: 75-105 kPa
Pollution degree: 1 or 2, in accordance with IEC66
Humidity: Maximum relative humidity 80% for temperatures up to 31°C, decreasing linearly to 50% relative humidity at 40°C
Manufacturing StandardsMeets applicable Safety and EMC certification standards; UL and CE certified
Instrument Dimensions (w x d x h) 50.3 x 39.1 x 34.8 cm (19.8 x 15.4 x 13.7 in.)
Instrument Weight8.6kg (19 lbs)*
*Weight includes the tray platform
