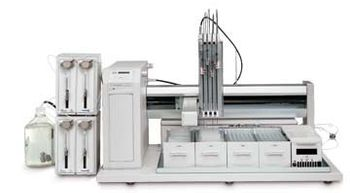

Gilson - Quad-Z 215 Handler/Injector
No Documents
Features four independent probes with variable horizontal spacing from 9 to 18 mm for access to a wide range of sample vessels.
Active Questions & AnswersAsk a Question
There are no current Discussions
Liquid Handling Service ProvidersView All (10)
Documents & Manuals
There are no Documents or Manuals available.
Features of Quad-Z 215 Handler/Injector
- Large bed capacity autosampler holds up to 17 microplates
- Accommodates many of Gilson's racks for maximum flexibility for sample transfer between tubes, vials and plates
- The 402 Syringe Pumps have four independently controlled syringes for use with the four independently controlled probes on the Quad-Z 215. This maximizes flexibility across all four channels
- The 402 Syringe Pumps accept syringe sizes ranging from 100 µL to 25 mL
- Optional 849 Multiple Injection Module enables automated on-line injection onto parallel HPLC systems
- Optional Code 300 Series SPE Racks are ideal for automated solid phase extraction applications
General Specifications
| Depth | 61 cm (24 in.) |
| Height | 60.8 cm (24 in.) *Maximum height. Z-arm height is adjustable to accommodate vessel heights between 1 and 150 mm (dependent on installed Z-arm). |
| Width | 91.4 cm (36 in.) |
| Power Requirements | 100-120 or 220-240 V, 2.5 A for 100-120 V or 1.4 A for 220-240 V, 50/60 Hz |
| Weight | 40 kg (89 lbs) |
| Dispensing Type | Multi-channel |
Additional Specifications
Manufacturing Standards: Meets applicable safety and EMC certification standards; UL and CE certified
Liquid Handling:
Reproducibility: 2.1% CV with 1 µL of DMSO
Accuracy: 104% with 1 µL of DMSO
Injection:
Volume: 5 µL–5 mL
Reproducibility: 2.0% CV with 500-µL syringe and partial loop filling method; 45.7 cm/sec (>18 in./sec)
Y: >40.6 cm/sec (>16 in./sec)
Front Panel: 8-character display, START and emergency STOP soft keys
Horizontal Motion Strength:
X: 5 kg (11.1 lbs.)
Y: 7 kg (15.6 lbs.)
Locator Plate Capacity: Up to five Code 200-Series racks in the standard locator plate, up to five combined Code 200-series and Code 20/30-Series racks in the standard locator plate, up to seven Code 20- or 30-Series racks in the Code 20- or 30-Series locator plate, or one Code 505 or 505H rack plus one Code 200-Series rack
Probe Positioning Performance:
Accuracy:±0.5 mm in X/Y dimensions±1 mm in Z dimension
Repeatability:±0.25 mm in X/Y/Z dimensions
Sampler Type: X/Y/Z with stationary rack design
Software: Via Gilson TRILUTION™ Software
Syringe Capacity: 100, 250 or 500 µL; 1, 5, 10 or 25 mL
Syringe Pump: External, integral, high-precision, four-piston
Vertical Punch Strength: 3.06 kg/probe (6.74 lbs./probe)
