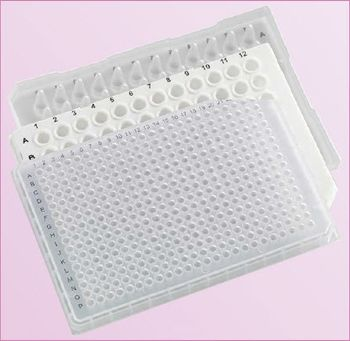

Porvair Sciences - PCR plates – polypropylene
Manufactured by Porvair Sciences
Porvair premium PCR plates are made from polypropylene for extra rigidity. These plates are compatible with the...
Porvair premium PCR plates are made from polypropylene for extra rigidity. These plates are compatible with the majority of 96- and 384-well block PCR and sequencing instruments, including FAST sequencers. Our expanded range includes traditional no-skirt, half-skirt and fully skirted plates with standard 350uL wells and in addition 200uL Low Profile versions of these. The latest ‘elevated’ or ‘chimney’ well plates are also catered for with several new products. To ensure full compatibility with robotic systems, these new DNase, RNase- and pyrogen-free thermal cycler plates feature high rigidity to minimize distortion before and after thermal cycling.
Active Questions & AnswersAsk a Question
There are no current Discussions
Microplates Service ProvidersView All (1)
Documents & ManualsView All Documents
Features of PCR plates – polypropylene
- Prominent black printed axis
- DNA and DNAase/RNAase free
- Non-pyrogenic
- Range designed to fit a variety of popular thermal cyclers and sequencers
- Raised rim for maximum sealing surface
- Thin wall design for better heat transfer
- 96-well have 350uL or 200uL capacity
- 384-well have a 50Μl capacity
- All plates conform to ANSI/SBS specification
General Specifications
There are no General Specifications available.
Series Modals
Porvair Sciences - 384-well PCR microplate
[+] View Model Specifications| Depth | 127.6 |
| Width | 85.67 |
| Well Spacing (center to center) | 4.5 mm |
| Additional Model Specifications | Working Volume: 50 uL
Part Number - Description [list] [*] 286111 - Polypropylene, DNase, RNase free, Full skirt, 50Μl per well [*] 286115 - Polypropylene, White, DNase, RNase free, Roche Lightcycler, RTPCR [/list] |
Porvair Sciences - 96-well PCR microplate
[+] View Model Specifications| Depth | 127.7 mm |
| Width | 85.6 mm |
| Well Spacing (center to center) | 8.89 mm |
| Additional Model Specifications | Working Volume: 350 uL or 200 uL
Part Number - Description [list] [*] 286101 - Polypropylene, DNase, RNase free, No skirt, Standard profile [*] 286102 - Polypropylene, DNase, RNase free, No skirt, Low profile [*] 286103 - Polypropylene, DNase, RNase free, No skirt, Standard profile, Elevated [*] 286104 - Polypropylene, DNase, RNase free, Half skirt, Low profile [*] 286105 - Polypropylene, DNase, RNase free, Half skirt, Standard profile [*] 286106 - Polypropylene, DNase, RNase free, Half skirt, Standard profile, Elevated [*] 286107 - Polypropylene, DNase, RNase free, Semi-skirt, Low profile, Elevated [*] 286108 - Polypropylene, DNase, RNase free, Full skirt, Low profile [*] 286109 - Polypropylene, DNase, RNase free, Full skirt, Low Profile, Megabace™ [*] 286110 - Polypropylene, DNase, RNase free, Half skirt, Straight sided, Standard profile [*] 286112 - Polypropylene, White, DNase, RNase free, Roche Lightcycler, RTPCR [/list] |
