Porvair Sciences - Storage/Collection
Manufactured by Porvair Sciences
Deep well polypropylene microplates are commonly used for sample storage in life science laboratories. An essential...
Deep well polypropylene microplates are commonly used for sample storage in life science laboratories. An essential aspect of the manufacture of these plates is the selection of clean raw materials for injection moulding. Polypropylene is an inert and heat resistant material, ideal for sample storage. However, all grades of polypropylene are not the same, for example, Injection moulding grades of polypropylene often have high concentrations of chemicals to aid the moulding process.
The family of 96 square well plates was designed so that it would make the interchange of plates simpler in automated systems. All three plates have the same geometry and the only variable is the well depth.
Porvair Sciences has a selection of 384-well polypropylene plates to suit most applications. All of them are made from pre-tested polypropylene in Class 100000 clean rooms.
The family of 96 square well plates was designed so that it would make the interchange of plates simpler in automated systems. All three plates have the same geometry and the only variable is the well depth.
Porvair Sciences has a selection of 384-well polypropylene plates to suit most applications. All of them are made from pre-tested polypropylene in Class 100000 clean rooms.
Active Questions & AnswersAsk a Question
There are no current Discussions
Microplates Service ProvidersView All (1)
Documents & Manuals
There are no Documents or Manuals available.
Features
There are no Features available.
General Specifications
There are no General Specifications available.
Series Modals

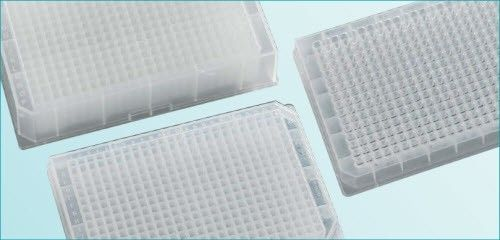

Porvair Sciences - 384-well
[+] View Model Specifications| Depth | 128.15 mm |
| Height | 30.2 mm |
| Width | 85.7 mm |
| Well Spacing (center to center) | 4.5 mm |
| Bottom Shape | Round, V-Shaped |
| Additional Model Specifications | Part Number - Description
[list] [*] 224001 - Polypropylene, Square Shaped, Round Bottom, 58 uL Working Volume [*] 219040 - Polypropylene, Square Shaped, V-Shaped Bottom, 300 uL Working Volume [*] 219041 - Polypropylene, Square Shaped, V-Shaped Bottom, Sterile, 300 uL Working Volume [/list] |

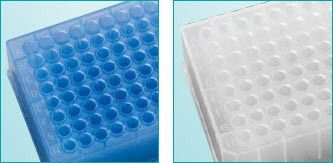

Porvair Sciences - 96-well deep round
[+] View Model Specifications| Depth | 128 mm (127.0 mm with Rim) |
| Height | 42 mm |
| Width | 86 mm (85.8 mm with Rim) |
| Well Spacing (center to center) | 9 mm (8.95 mm with Rim) |
| Bottom Shape | Round |
| Additional Model Specifications | Part Number - Description
[list] [*] 219002 - Polypropylene, DNase, RNase free, Raised Rim, Clear, 1 mL Working Volume [*] 219012 - Polypropylene, DNase, RNase free, sterile, Raised Rim, Clear, 1 mL Working Volume [*] 219037 - Polypropylene, DNase, RNase free, No Rim, Clear, 1 mL Working Volume [*] 219432 - Polypropylene, DNase, RNase free, sterile, Raised Rim, Blue, 1 mL Working [*] 219422 - Polypropylene, DNase, RNase free, sterile, Raised Rim, Red, 1 mL Working [*] 219412 - Polypropylene, DNase, RNase free, sterile, Raised Rim, Black, 1 mL Working [/list] |

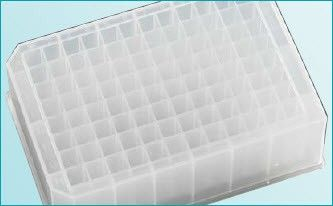

Porvair Sciences - 96-well deep square
[+] View Model Specifications| Depth | 127.6 mm |
| Height | 44 mm |
| Width | 85.5 mm |
| Well Spacing (center to center) | 9 mm |
| Bottom Shape | V-Shape |
| Additional Model Specifications | Working Volume: 350 uL, 1 mL or 2 mL
Part Number - Description [list] [*] 219006 - Polypropylene, DNase, RNase free, 350 uL Working Volume [*] 219025 - Polypropylene, DNase, RNase free, sterile, 350 uL Working Volume [*] 219008 - Polypropylene, DNase, RNase free, 1 mL Working Volume [*] 219026 - Polypropylene, DNase, RNase free, sterile, 1 mL Working Volume [*] 219009 - Polypropylene, DNase, RNase free, 2 mL Working Volume [*] 219027 - Polypropylene, DNase, RNase free, sterile, 2 mL Working Volume [/list] |

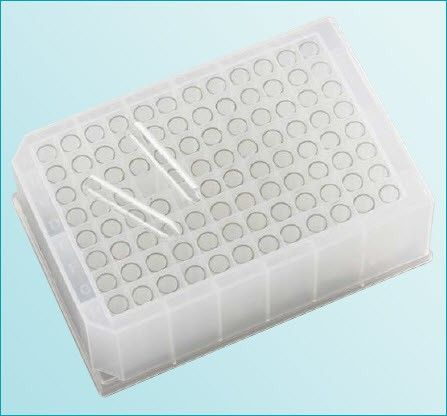

Porvair Sciences - 96-well glass vial storage pla
[+] View Model Specifications| Depth | 128 mm |
| Height | 44 mm |
| Width | 85.4 mm |
| Well Spacing (center to center) | 9 mm |
| Part Number | 229230 |
| Bottom Shape | Round |
| Additional Model Specifications | [list]
[*] Store aggressive solvents in glass vials [*] Chemically resistant [*] No trace impurities for UHPLC [*] Prevent evaporation with matching cap mat [/list] |

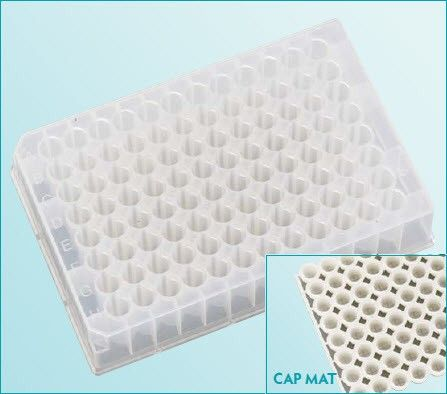

Porvair Sciences - 96-well round low profile
[+] View Model Specifications| Depth | 128 mm |
| Working Volume | 0 to 1 ml |
| Height | 27 mm |
| Width | 85.4 mm |
| Well Spacing (center to center) | 9 mm |
| Part Number | 219250 |
| Additional Model Specifications | [list]
[*] Allows stacking in higher densities [*] Minimises space needed for compound storage [*] Pure virgin polypropylene [*] Matching snug-fitting cap mat [/list] |

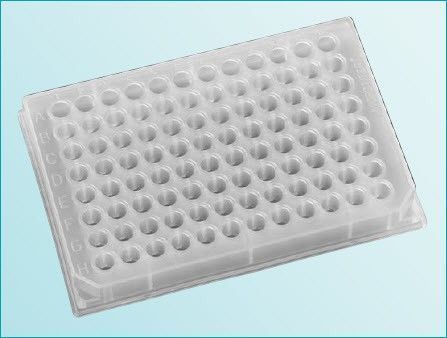

Porvair Sciences - 96-well shallow round
[+] View Model Specifications| Depth | 128 mm |
| Height | 14.7 mm |
| Width | 85.4 mm |
| Well Spacing (center to center) | 9 mm |
| Bottom Shape | Flat, round, or V-Shaped |
| Additional Model Specifications | Working Volume: 350 uL, 270 uL or 220 uL
Part Number - Description [list] [*] 208003 - Polypropylene, DNase, RNase free, No Rim, Flat Bottom, 350 uL Working Volume [*] 209003 - Polypropylene, DNase, RNase free, Raised Rim, Round Bottom, 270 uL Working Volume [*] 210003 - Polypropylene, DNase, RNase free, Raised Rim, V-Shaped Bottom,220 uL Working Volume [/list] |
