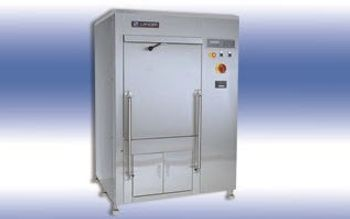

Lancer - 1600 TI Series
High capacity washing for Industrial Applications
Active Questions & AnswersAsk a Question
There are no current Discussions
Large Capacity Washers Service ProvidersView All (7)
Documents & ManualsView All Documents
Features of 1600 TI Series
Key features of 1600 TI / TI DP Freestanding Industrial Washers:
Rugged design for industrial applications
Main recycling pump constructed of stainless steel to withstand aggressive chemicals
Chamber and door constructed of 316 L stainless steel
Advanced options: traceability, validation, conductivity meter and additional dosing pumps
Double door configurations for pass through applications
All Lancer washers feature these key benefits:
Fast cycles and outstanding results from powerful wash action and design
Easy to use microprocessor controls with self-diagnostic software and alarms
Flexibility of multi-level injection washing and interchangeable racks
All sizes and types of glassware cleaned with chamber configuration choices
Ergonomic and safe loading of racks on load bearing telescopic runners
Choice of preset and user-customized (PIN code protected) programs
Accurate and repeated intake of cleaning chemicals by automatic peristaltic dosing pumps
Cost effective – low life cycle costs and efficient operation uses less resources and inventory
Eco-friendly low energy, chemicals and water usage
General Specifications
There are no General Specifications available.
Series Modals
Lancer - 1600 TI
[+] View Model SpecificationsDepth | 40.35 in |
Height | 71.46 in |
Internal Depth | 25.98 in |
Internal Height | 33.66 in |
Width | 49.21 in |
Internal Width | 25.79 in |
Power Requirements | 21 kw |
Heat Loss | 5,555 Btu/1500 Kcal/h |
Noise Level | 71 dB |
Weight | 250 kg |
Part Number | 1600 TI |
Water Consumption | 25 L / 6.6 gal - per fill |
Drying System | Forced Air |
Washer Capacity | Large Capacity |
Additional Model Specifications | Drying: Chamber Drying Loading Height: 725 mm / 28.5 in |
Lancer - 1600 TI DP
[+] View Model SpecificationsDepth | 36.81 in |
Height | 71.06 in |
Internal Depth | 25.98 in |
Internal Height | 33.66 in |
Width | 60.63 in |
Internal Width | 25.79 in |
Power Requirements | 21 kw |
Heat Loss | 5,555 Btu/1500 Kcal/h |
Noise Level | 71 dB |
Weight | 250 kg |
Part Number | 1600 TI DP |
Water Consumption | 25 L / 6.6 gal - per fill |
Drying System | Forced Air |
Washer Capacity | Large Capacity |
Additional Model Specifications | Drying: Chamber Drying Loading Height: 725 mm / 28.5 in |
