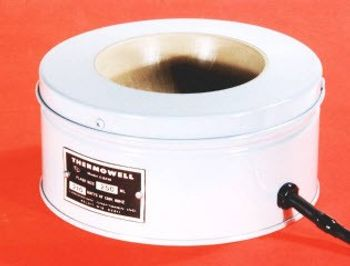

Economical and dependable. These mantles have a ceramic heat cavity (resistance wire completely embedded), a grounded metal housing for safer operation, a low profile that permits magnetic stirring, and can be operated at up to 550 °C. May be used as an air or sand bath. All models have a 36 in., 3-wire, integral power cord with U.S. plug (used as an interconnector plug with POWERMITE™ heat controllers). 50/60 Hz.

THERMOWELLs ARE USED BY

Student organic and general chemistry labs in colleges and universities and some high schools world wide.

Industrial and pharmaceutical chemical labs, research institutes, medical labs, glass blowers, etc.


APPLICATIONS

Refluxing, distillations, digestions, air baths, Kjeldahls, media preparation, vacuum diffusion pumping, solvent extractions, etc.


CONSTRUCTION FEATURES

Ceramic heat cavity with an embedded nichrome resistance wire for outstanding durability and safety. Temperatures to 500°C.

Steel housing with a protective epoxy coating.

Aluminum bottom permits magnetic stirring.

3-wire, 3-foot power cord is grounded to the housing for increased safety.

Six-month warranty (unique) against failure due to a manufacturing flaw (not chemical spillage or superheating).

220-240 volt, 50/60 Hz units are available.

230v 100mL, 250mL, 500mL, Have the CE mark
