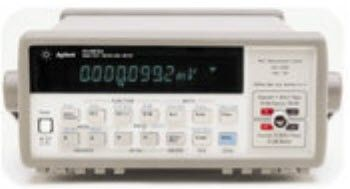

34420A Micro-Ohm Meter
The Agilent 34420A nanoVolt, micro-Ohm meter is a high-sensitivity multimeter optimized for performing low-level measurements. It combines low-noise voltage measurements with resistance and temperature functions, setting a new standard in low-level flexibility and performance.
Active Questions & AnswersAsk a Question
There are no current Discussions
Multimeters Service ProvidersView All (2)
Documents & ManualsView All Documents
Features of 34420A
-
Measurement Capability
- 7 ½ digit resolution
- High sensitivity DCV and resistance measurements at 100 pV and 100 nOhm
- Built-in low noise 2 channel scanners
- Temperature measurements with 0.003 deg C accuracy using SPRT probes Applications
- 3 low power, dry circuit testing built-in resistance functions
- Direct SPRT, RTD, Thermistor, and Thermocouple measurements
General Specifications
| Weight | 3 kg |
| Operating Temperature | 0 to 55 °C |
| Storage Temperature | -40 to 75 °C |
Additional Specifications
Front Panel Connection: Shielded, low thermal, 99% copper contacts.
Power Supply: 100V/120V/220V(230V)/240V +- 10%.
Power Line Frequency: 45 Hz to 66 Hz and 360 Hz to 440 Hz.
Automatically sensed at power-on.
Power Consumption: 25VA peak (10W average).
