Agilent Technologies - U1213A

Manufactured by  Agilent Technologies
Follow this Equipment

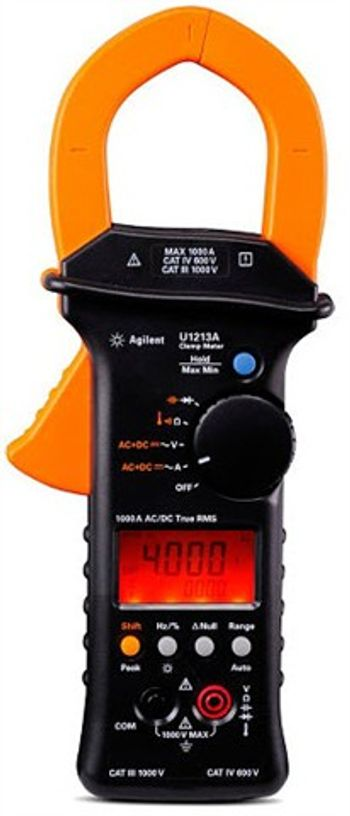

U1213A Handheld Clamp Meter

Measurements of electrical distribution cables can be challenging and risky. For cables up to two inches in diameter, the Agilent U1210 series handheld clamp meters enable high-current measurements without breaking the circuit. Unlike most clamp meters, they also include DMM capabilities—resistance, capacitance, frequency and temperature—to simplify troubleshooting during installation and maintenance. Best of all, they provide an extra layer of protection with CAT IV 600V and CAT III 1000 V safety ratings. Clamp on with the U1210 series and get convenience, versatility and the ability to handle big currents—safely.
Active Questions & AnswersAsk a Question

There are no current Discussions

Multimeters Service ProvidersView All (2)

Request Support
Features of U1213A
      Handle large current - safely
  • 1000A DC and True RMS AC, AC+DC current measurements
  • Small body and large jaw size up to 52mm
  • One-hand operation
  • Peak-hold with in-rush current measurement
  • Large backlit dual display
  • Temperature and capacitance measurement
  • Manual and auto-ranging for all measurements
  • CAT III 1000V and CAT IV 600V safety protection
General Specifications
Depth 260 mm
Height43 mm
Width 106 mm
Operating Temperature-10 to 50 °C
Storage Temperature -20 to 60 °C
