Agilent Technologies - U1191A

Manufactured by  Agilent Technologies
Follow this Equipment

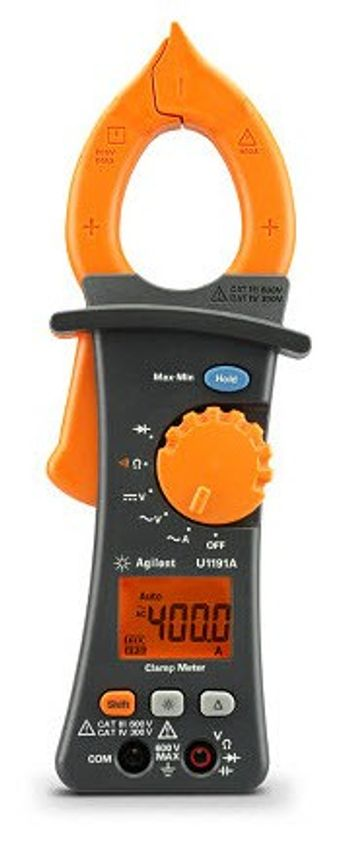

U1191A Handheld Clamp Meter

U1190 Series clamp meter fit comfortably in the palm of your hand and allow you to select measurement functions with thumb press. The unique wire separator allows you to effortlessly isolate and perform measurements on individual wires in a bundle. For improved visibility when making measurements, these clamp meters come with integrated LED flashlight that illuminates the test area. These features ensure that you are better equipped when making measurements.
Active Questions & AnswersAsk a Question

There are no current Discussions

Multimeters Service ProvidersView All (2)

Request Support
Features of U1191A

  • 400 A average responding current measurement
  • Unique wire separator to separate wires from a bundle
  • Visual and audible continuity indication in noisy environments
  • Digital multimeter (DMM) with resistance, DCV, ACV and ACA
  • CAT III 600 V / CAT IV 300 V safety rating
General Specifications
Depth 38.6 mm
Height225 mm
Width 77.1 mm
Weight320 g
Operating Temperature-10 to 50 °C
Storage Temperature -40 to 60 °C
