Agilent Technologies - U1194A
Manufactured by Agilent Technologies

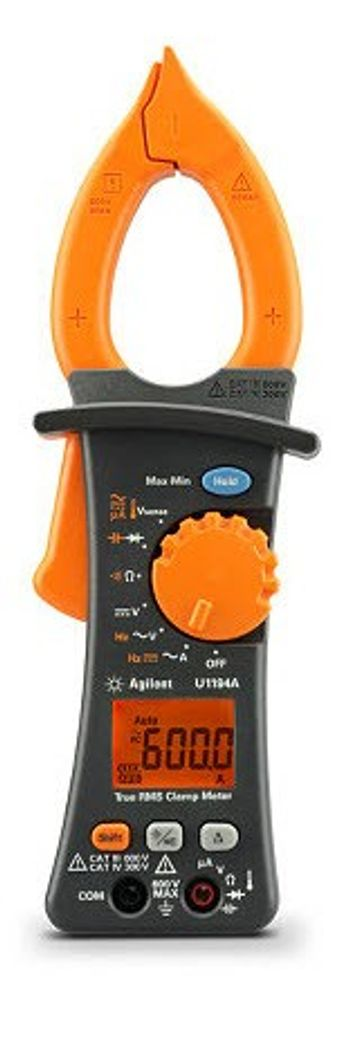

U1194A Handheld Clamp Meter
U1190 Series clamp meter fit comfortably in the palm of your hand and allow you to select measurement functions with thumb press. The unique wire separator allows you to effortlessly isolate and perform measurements on individual wires in a bundle. For improved visibility when making measurements, these clamp meters come with integrated LED flashlight that illuminates the test area. These features ensure that you are better equipped when making measurements.
Active Questions & AnswersAsk a Question
There are no current Discussions
Multimeters Service ProvidersView All (2)
Documents & ManualsView All Documents
Features of U1194A
- 600 A true RMS current measurement
- Unique wire separator to separate wires from a bundle
- Vsense to perform non-contact voltage detection
- Built-in LED flashlight to illuminate test area
- Visual and audible continuity indication in noisy environments
- Digital multimeter (DMM) with resistance, capacitance, DCV, ACV, DCA, ACA, DCµA and ACµA
- Temperature measurment
- CAT III 600 V / CAT IV 300 V safety rating
General Specifications
| Depth | 38.6 mm |
| Height | 238 mm |
| Width | 77.1 mm |
| Weight | 348 g |
| Operating Temperature | -10 to 50 °C |
| Storage Temperature | -40 to 60 °C |
