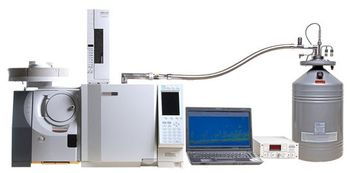

Zoex Corporation - ZX1
Manufactured by Zoex Corporation
Easy to install; most users can manage own installation within 2 hoursCan be uninstalled and allow GC t...
- Easy to install; most users can manage own installation within 2 hours
- Can be uninstalled and allow GC to be used for other methods. Not necessary to have dedicated GC
- More robust than the quad jet
- Sharpest known modulation gives sharpest secondary peaks, hence highest possible secondary peak capacity.
- Higher sensitivity than non-thermal modulators due to peak focusing
- Compatible with MS at ordinary flow rates, unlike non-thermal modulators
Active Questions & AnswersAsk a Question
There are no current Discussions
GC Systems Service ProvidersView All (42)
Documents & ManualsView All Documents
Features of ZX1
- 2 stage loop modulator
- Liquid N2 cooling bath (optional 5, 10 or 20 liters)
- Modulation rated for C3+
- Installs on Agilent 7890GC, 6890GC, 5973QMS, Shimadzu GC-2010 & GCMS-QP2010Plus, Thermo Trace GC
- Secondary oven installed as an option
- Secondary oven can lead or lag the main oven up to 40°C
- No moving parts
- Modulation cycle range from 1000ms – 32000ms
General Specifications
There are no General Specifications available.
